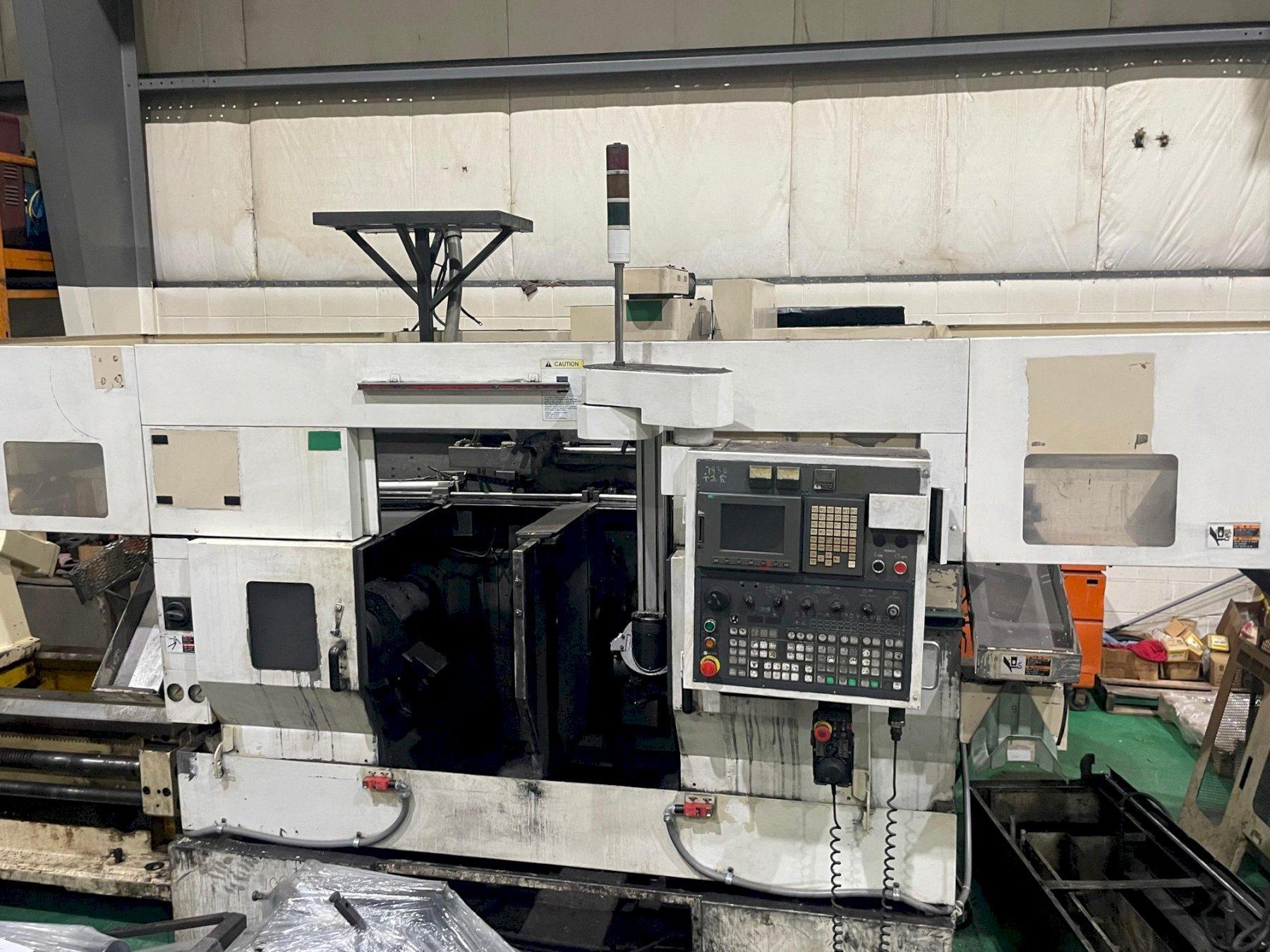

Muratec MW200 Single Gantry Loader | Lee Stevens Machinery

Brand
MURATEC

Model
MW200

Type
Lathes, Chucking, Cnc

Stock #
63968

Condition
Not specified

Year
2002

Location
Wixom, Michigan
United States

Request Quote

Specifications

Equipped With

General Specifications:
Chuck Diameter x 2 10”
Max. Work Diameter 14.9”
Max. Turning Diameter 13.78”
Max. Turning Length 5.51”
Spindle RPM Range 24-3500
Spindle Nose A2-6 Spindle
HP Each 30 HP Spindle
Bore 2.48”
Turret Positions x 2 10
Tool Shank Sizes 1.57” rd, 1.00” sq.
X1 & X2 Travels 7.48” Z1 & Z2 Travels 7.48”
Machine L x WH 93” x 93” x 83”
Machine Weight 15,400 lbs
Equipped With:

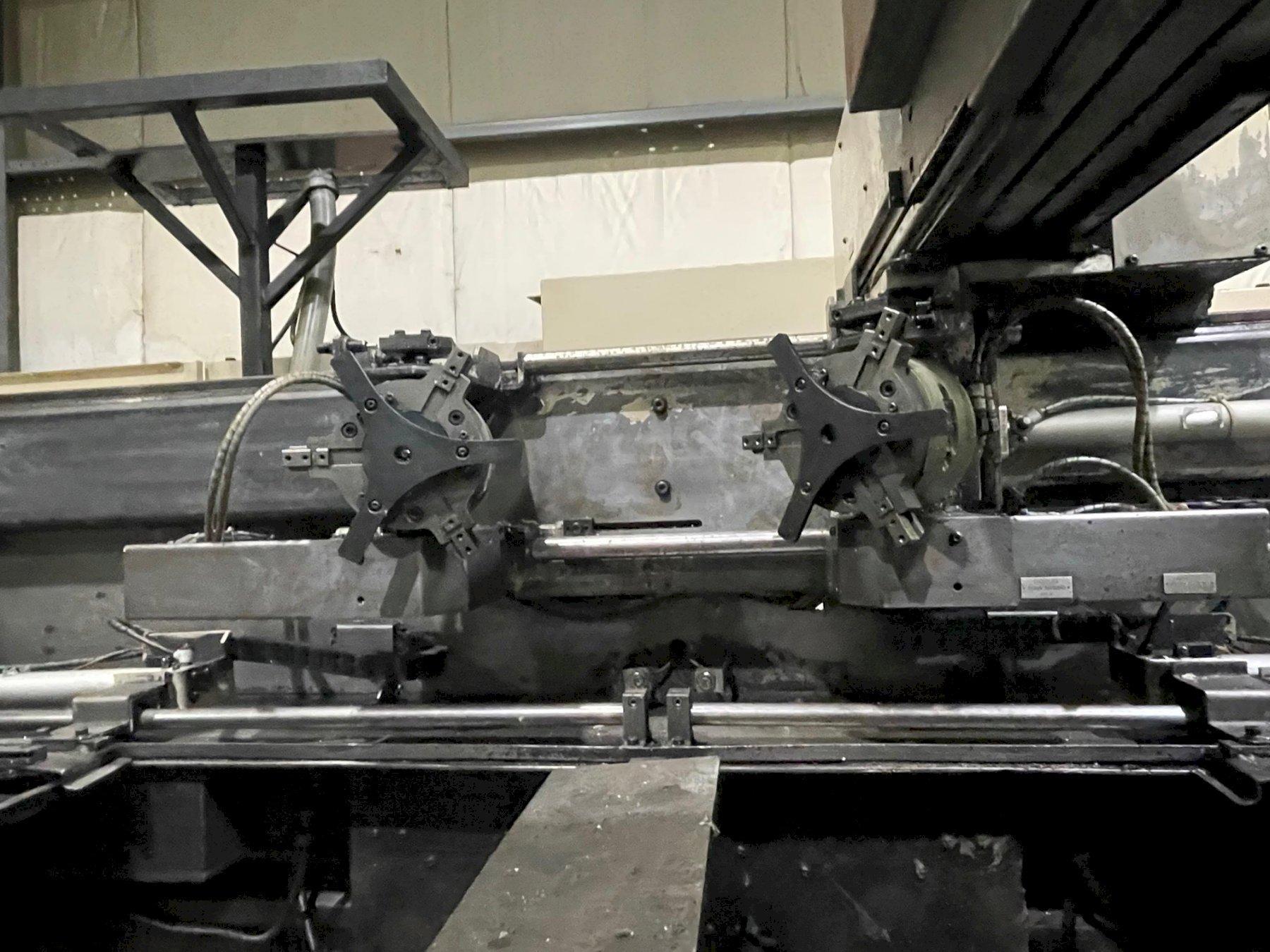

High Speed Gantry Loader
Coolant systems
Rear Discharge

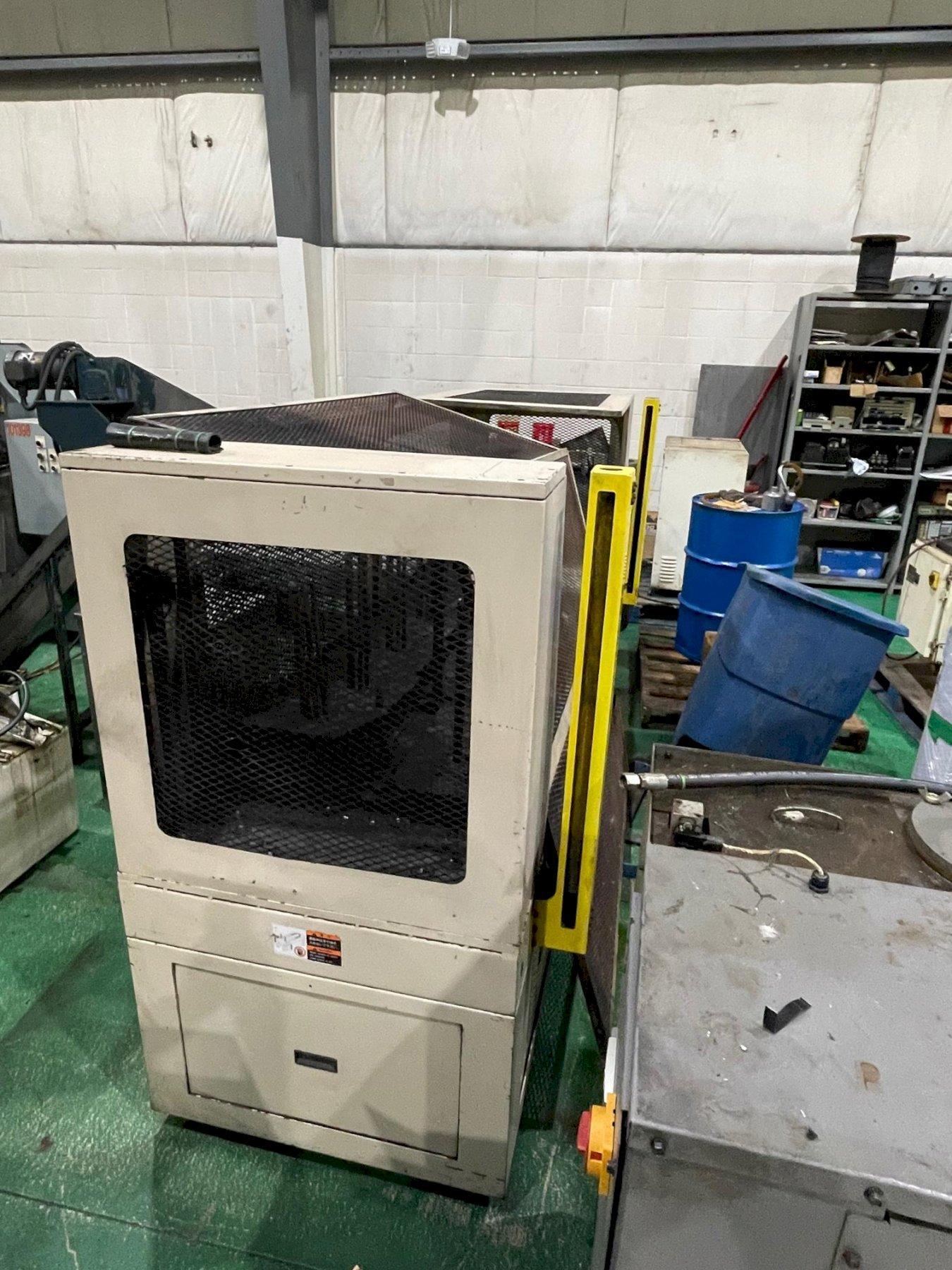

Chip Conveyor
Hydraulic Chuck Cylinders (need to confirm)
Program Select Switch
Work Clamp Confirmation – Both Sides
