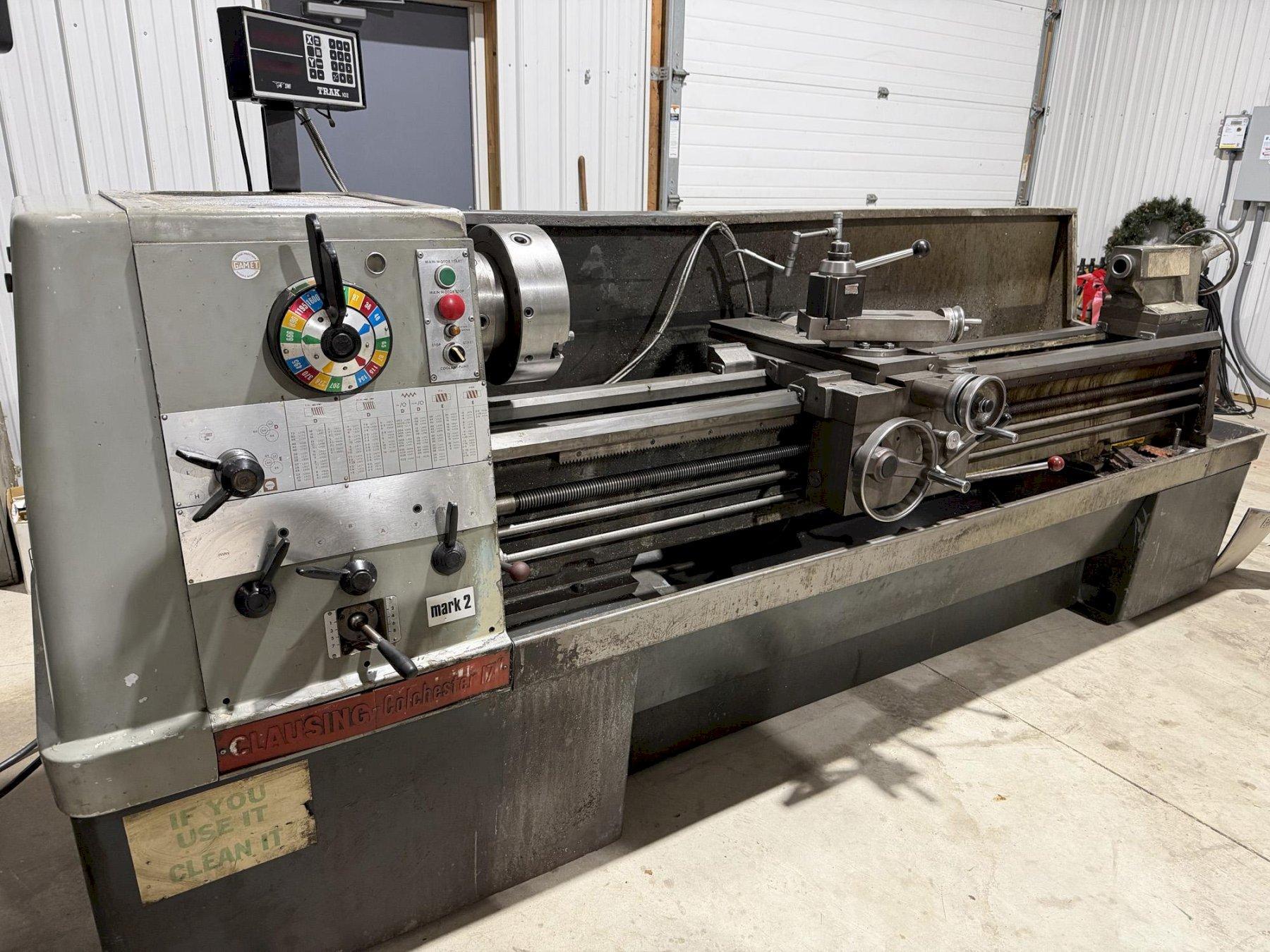

Clausing Colchester 17" x 80" Engine Lathe

17"/17.2" x 80" CLAUSING-COLCHESTER "17"

EQUIPPED WITH:

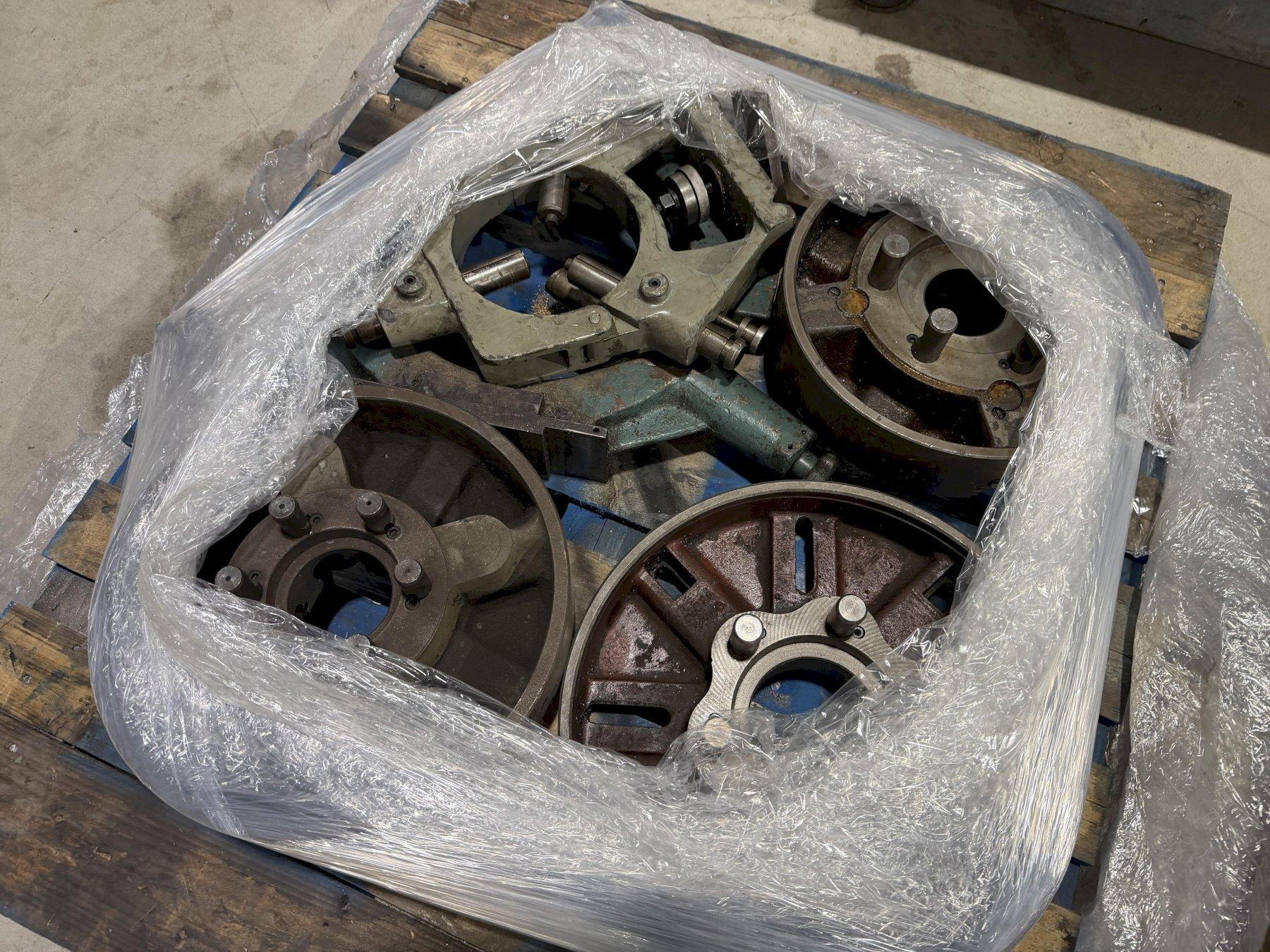

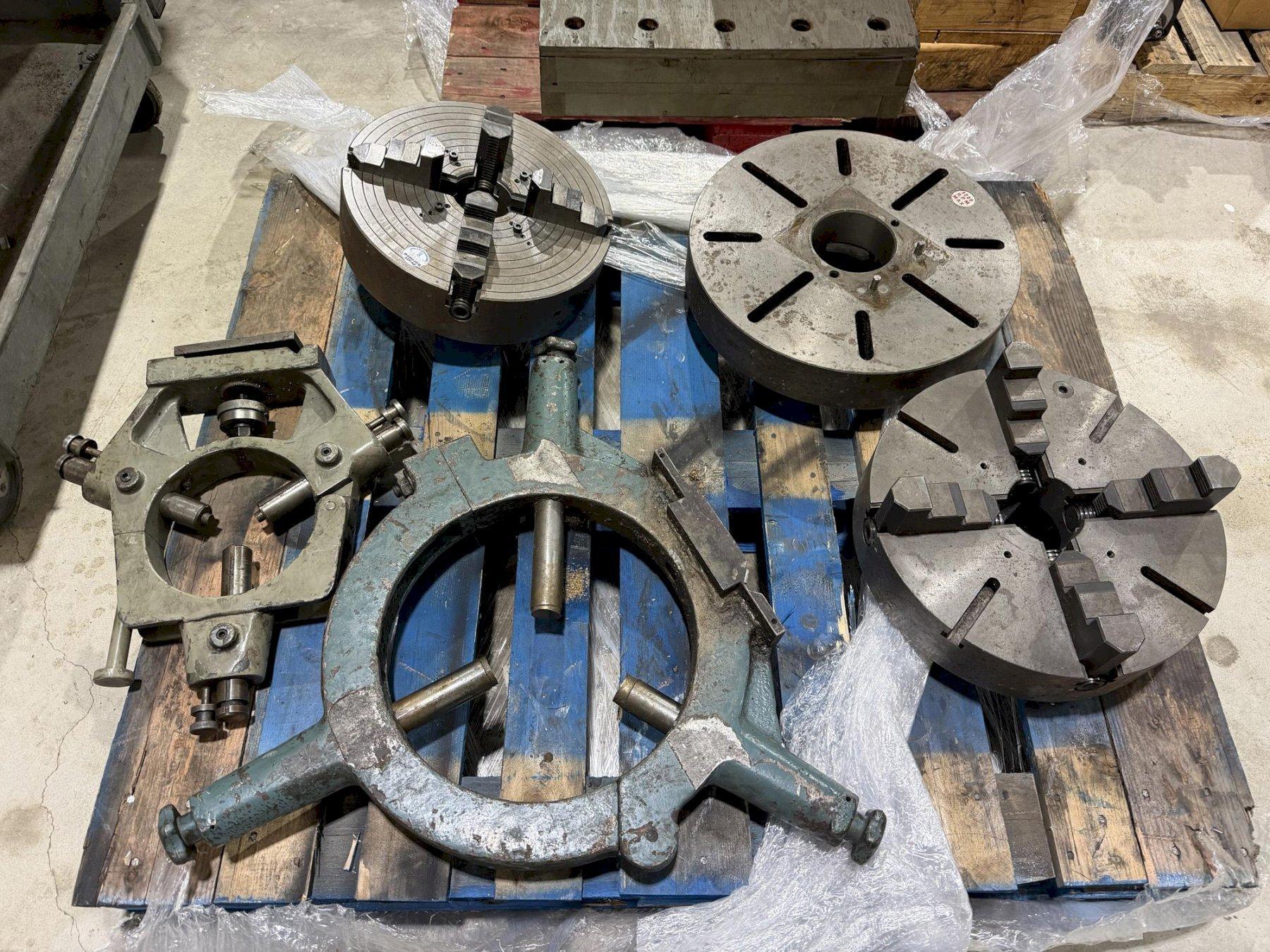

12" 3-Jaw Chuck - 14" 4-Jaw Chuck, 15" 4-Jaw, 17" Face Plate
2-Steady Rests

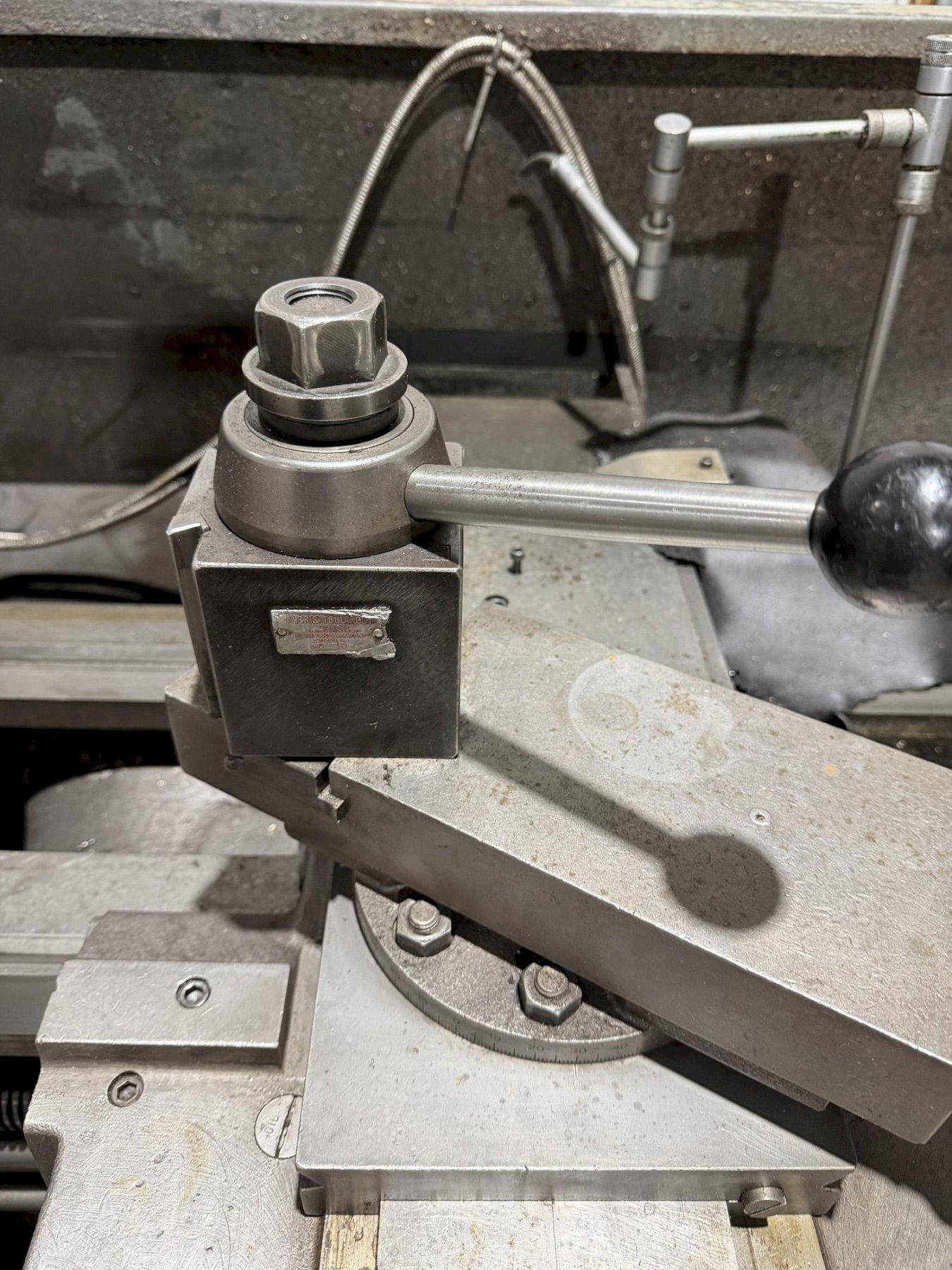

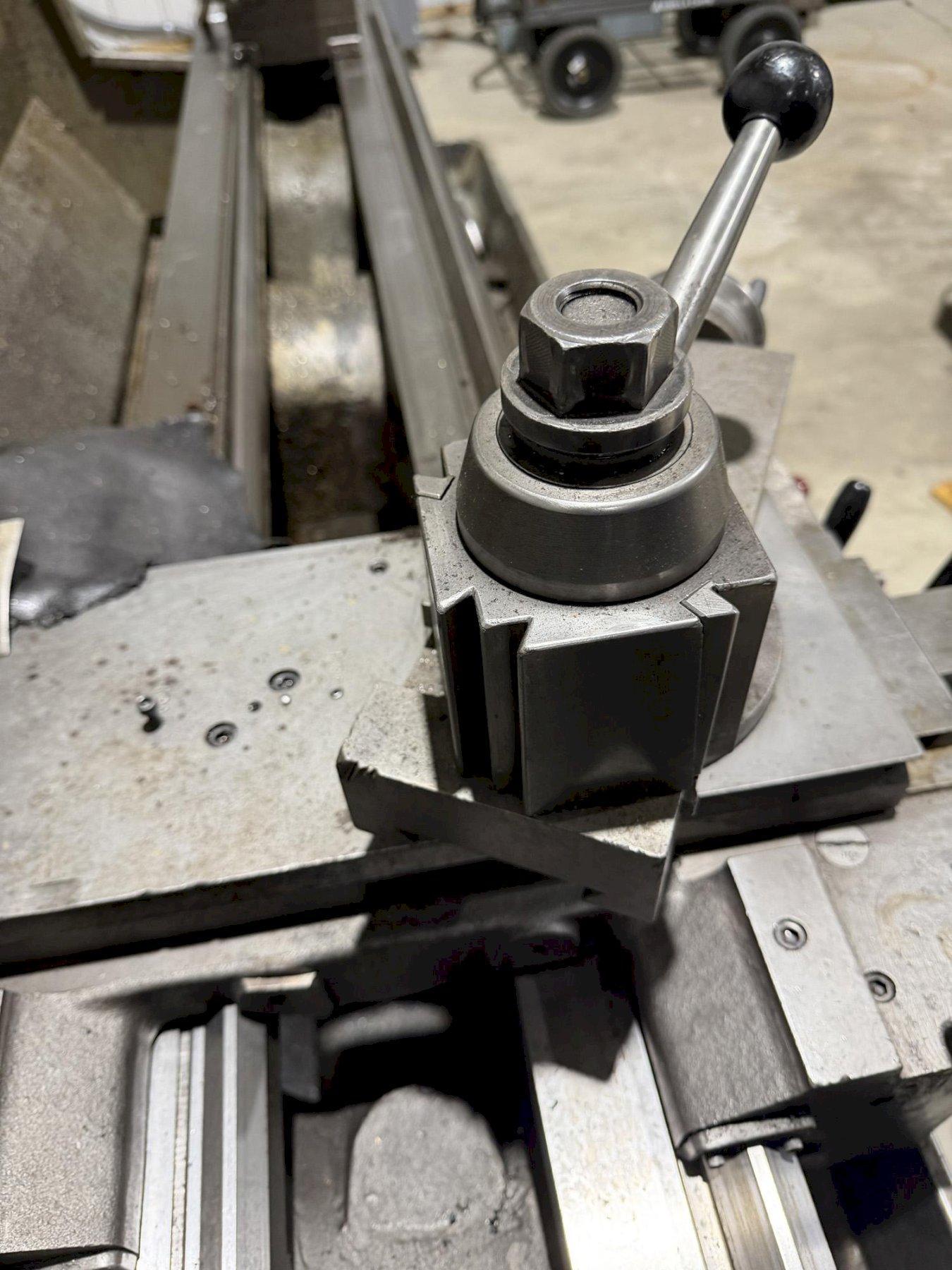

2-Way Aloris Tool Post -With a lot of holders (See Picture)
Induction Hardened & Ground Bed Ways

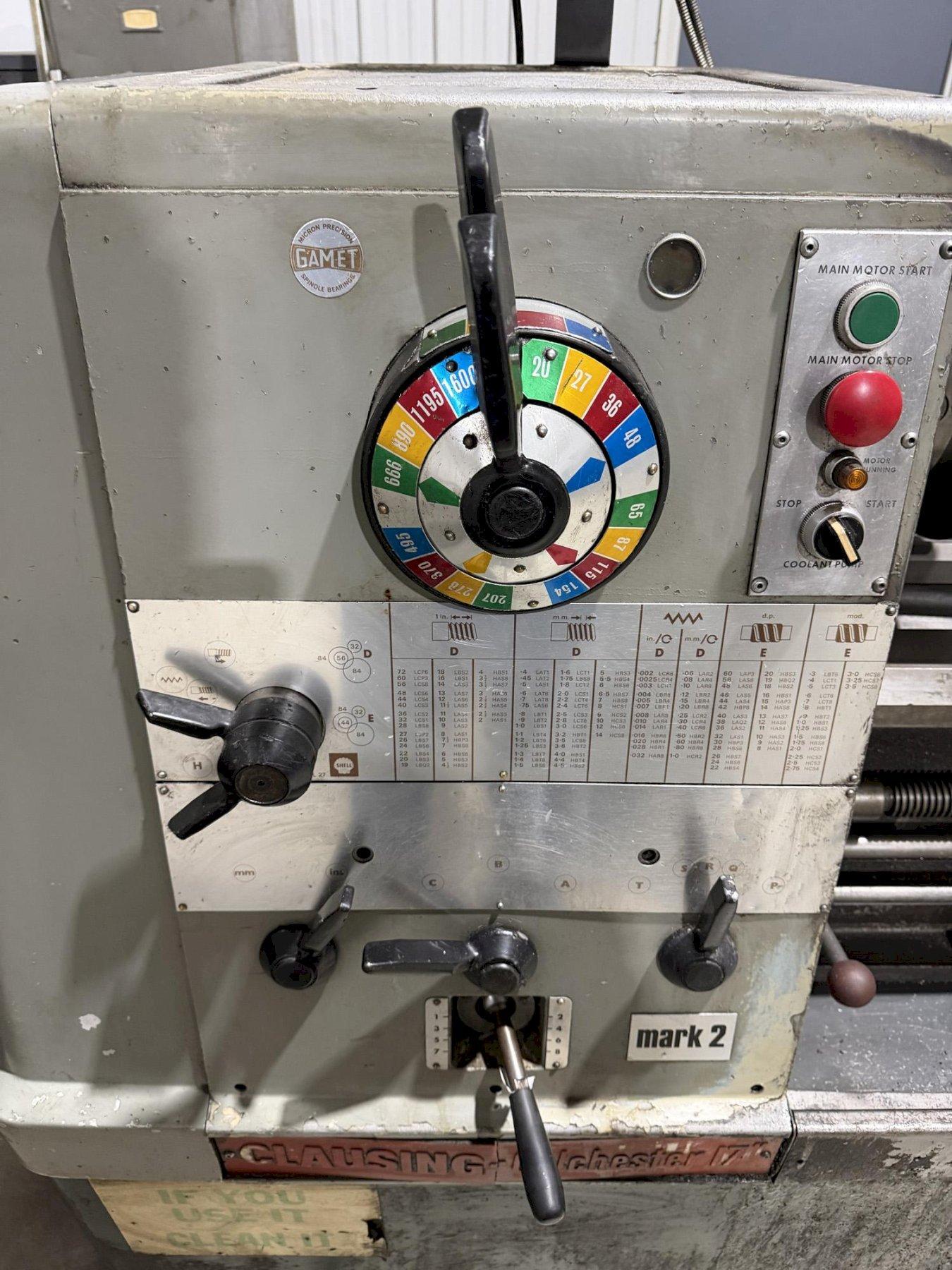

Universal Gear Box (U.S. and Metric Threads)
Tailstock & Centers
Full Length Coolant-Chip Pan
CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.06"
Swing Over Bed Ways, Rated 17"
Swing Over Bed Ways, Actual 17.25"
Swing Over Cross-Slide 10.5"
Distance Between Centers 80"
Cross-Slide Cross-Feed Travel 12.25"
Compound-Rest Travel 6"
Tailstock, Spindle Diameter 2.94"
Tailstock, Spindle Travel 8.5"
Tailstock, Spindle Taper #5 MT
(16) Spindle Speeds, Range 20 to 1600 RPM
Carriage Longitudinal Feeds .002 to .032 IPR
Cross-Slide Cross Feeds .001 to .016 IPR
(38) U.S. Thread Changes, Range 2 to 72 TPI
(40) Metric Thread Changes, Range .4 to 14
Main Motor, Horsepower 10 HP
Floor Space Required, L x D 11'6" x 3'6"
Overall Height 4'4"

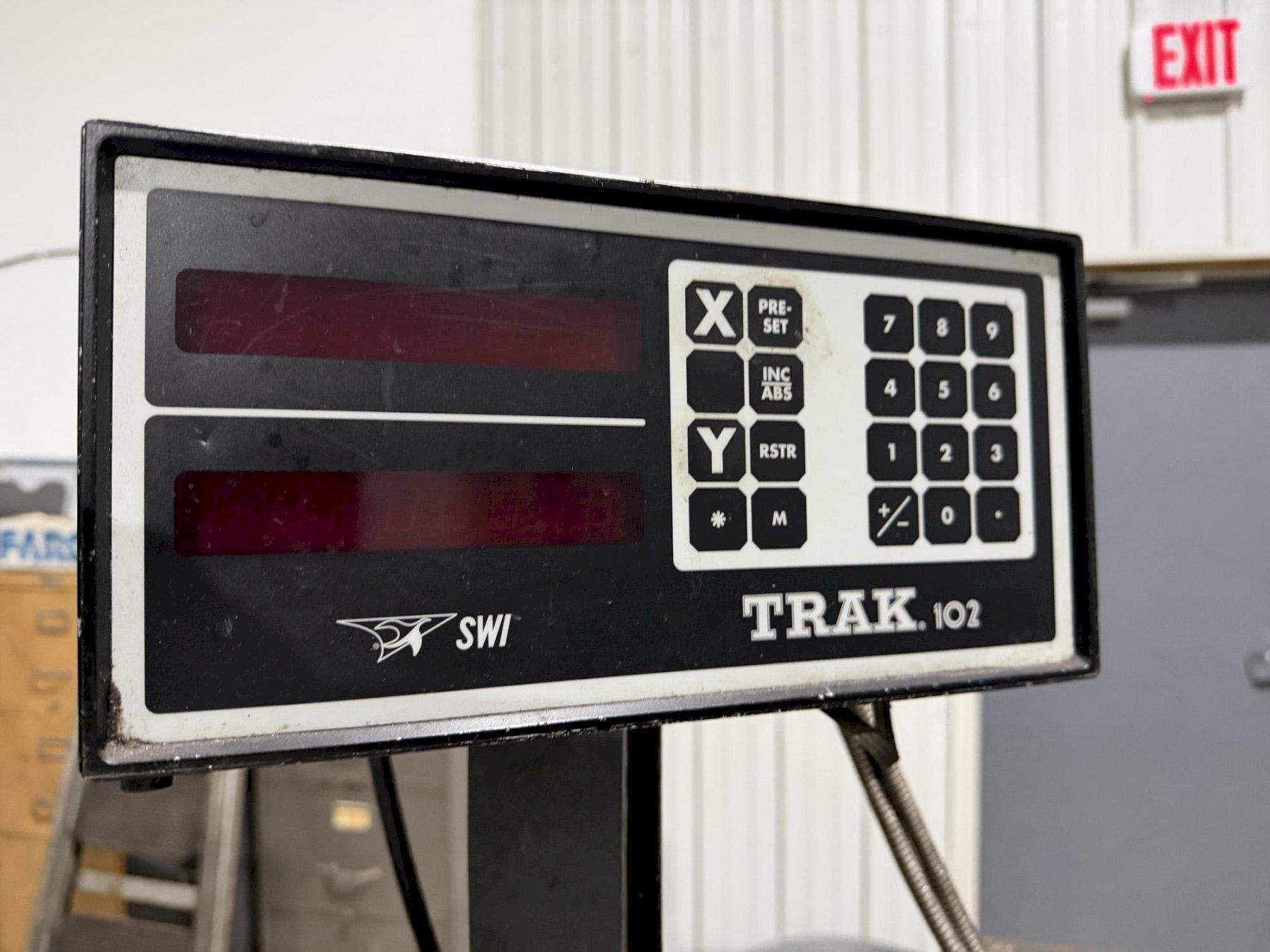

SWT Trak 102 2 Axis Digital Readout

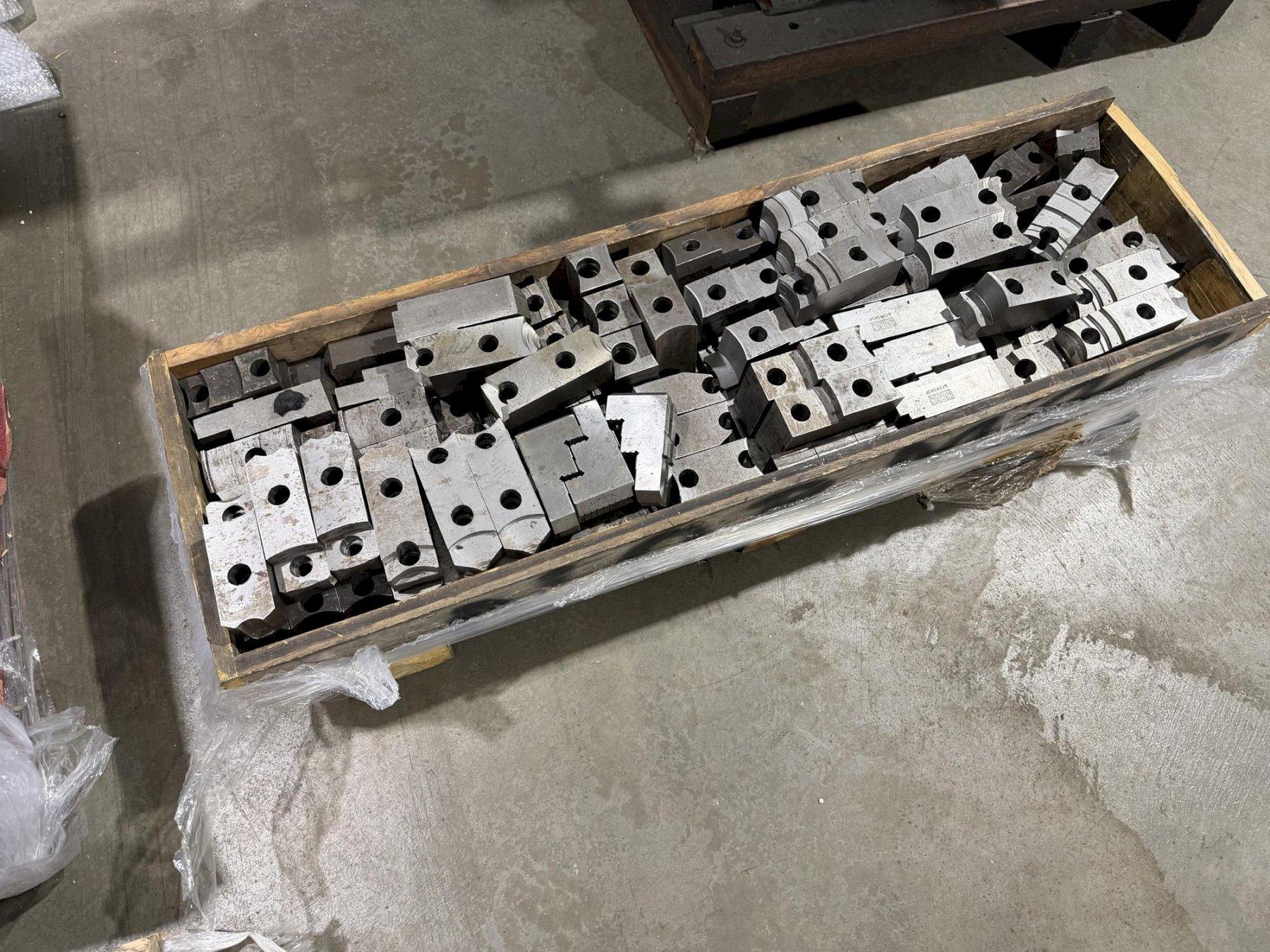

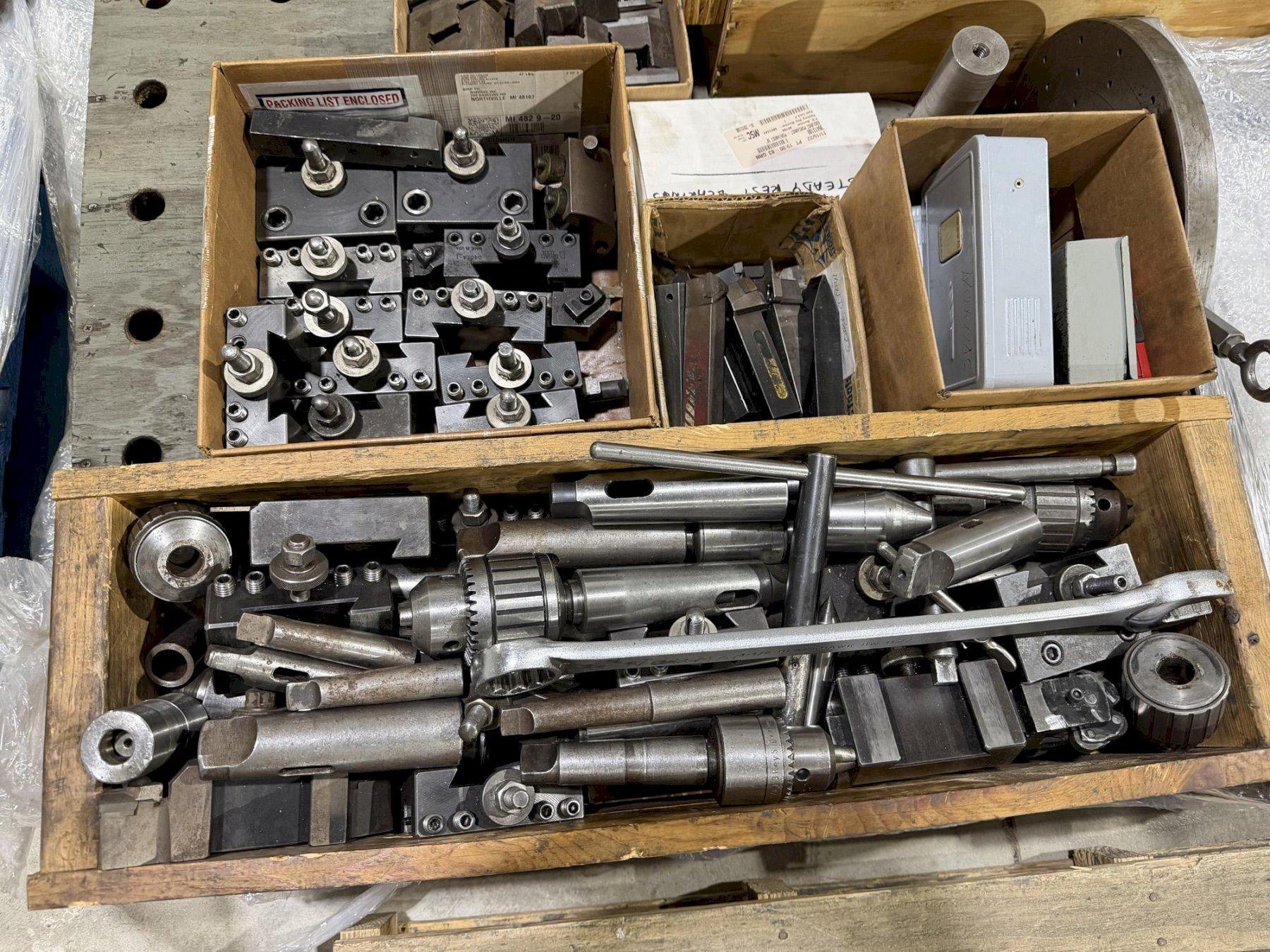

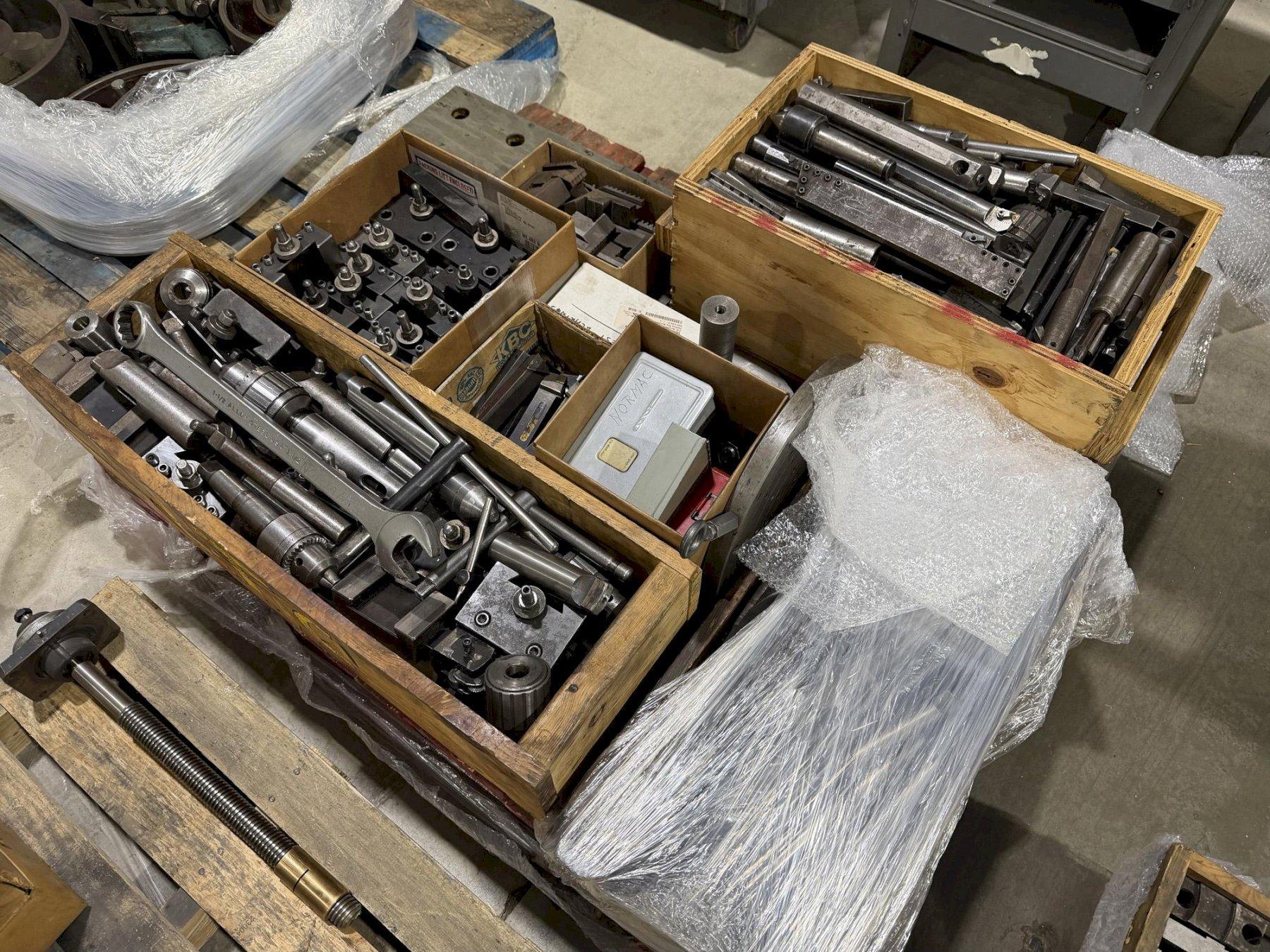

Chucks, Chuck Jaws, Tool Holders, Boring Bars-As Seen In Pictures
