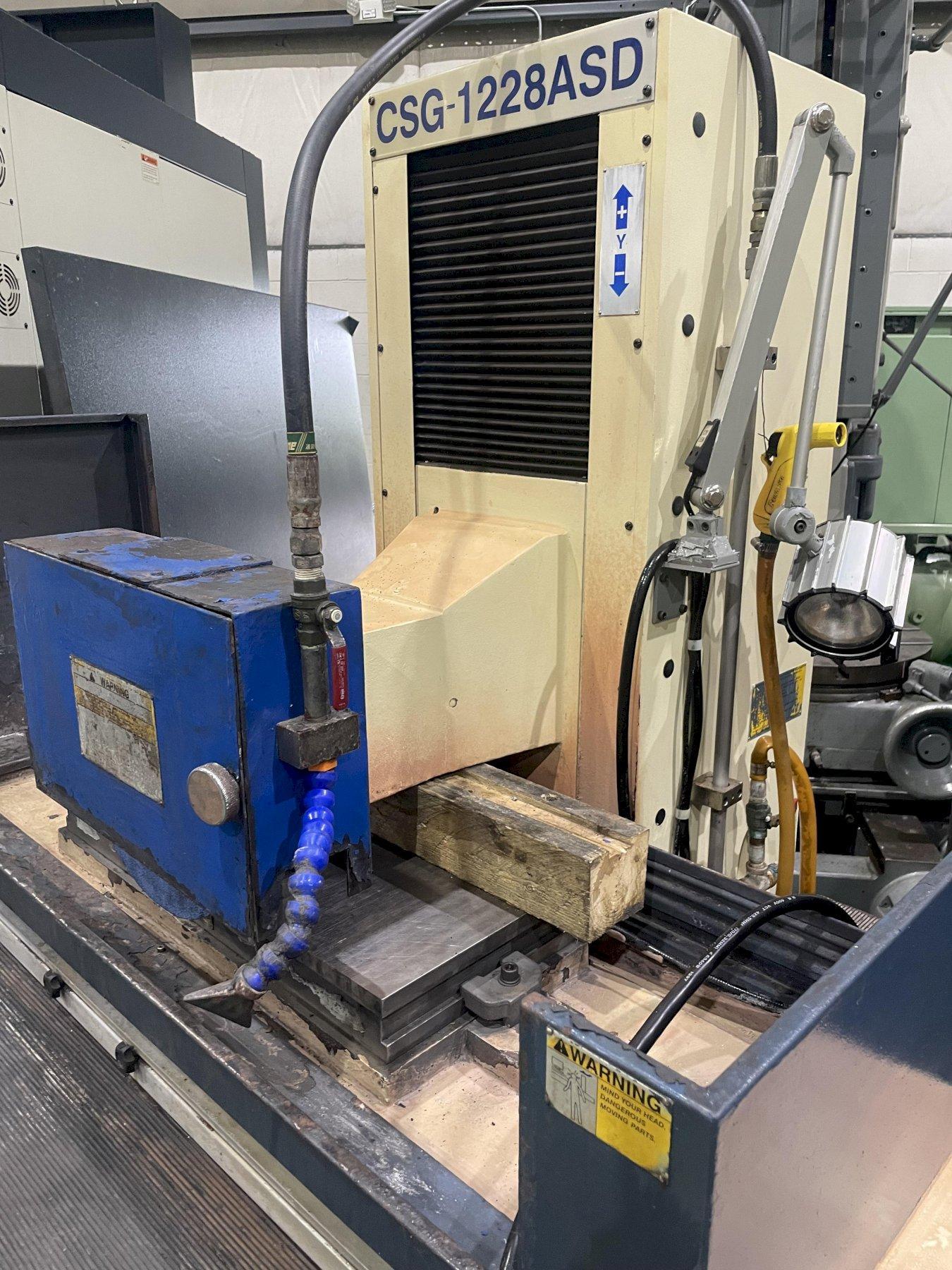

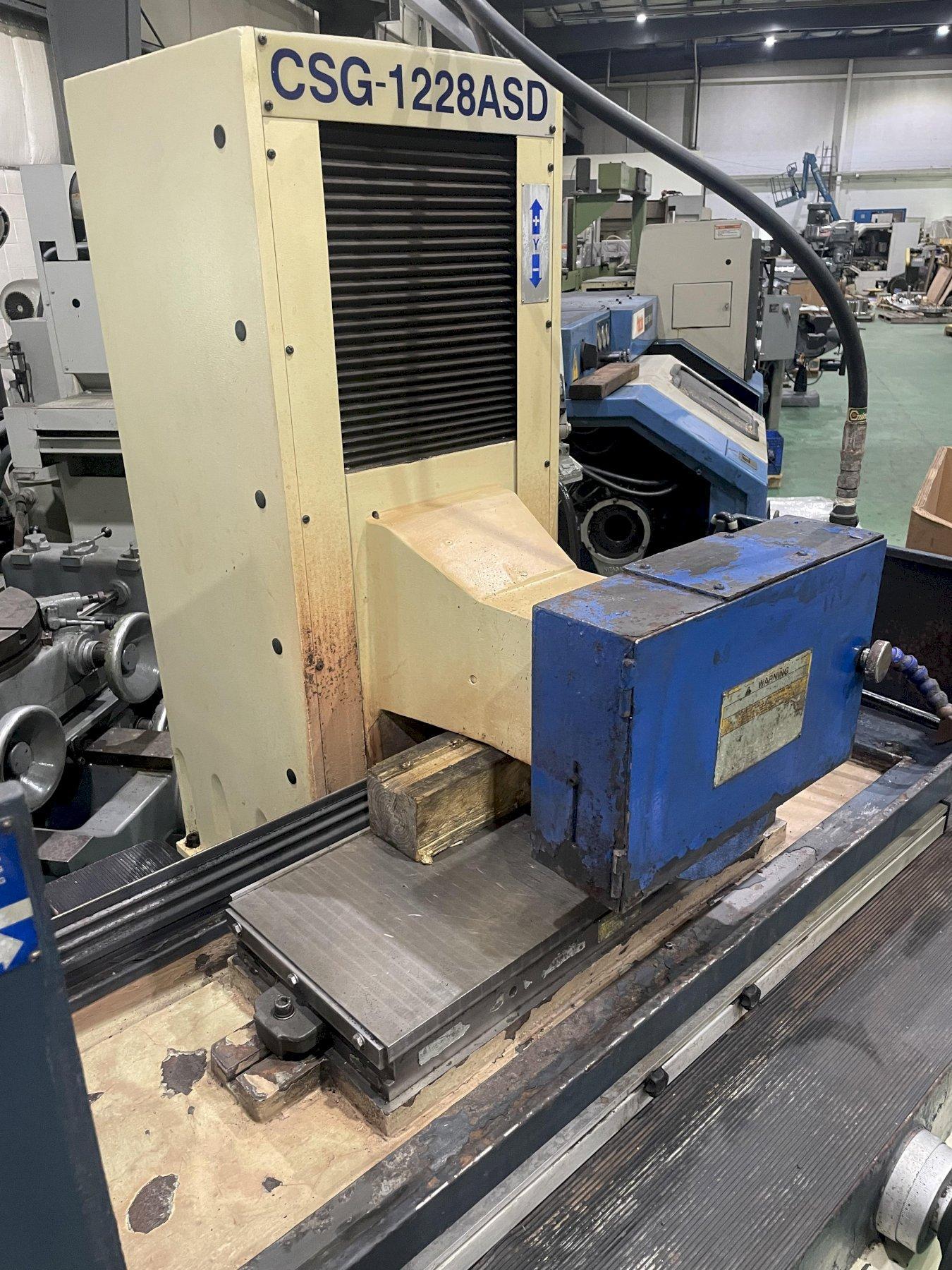

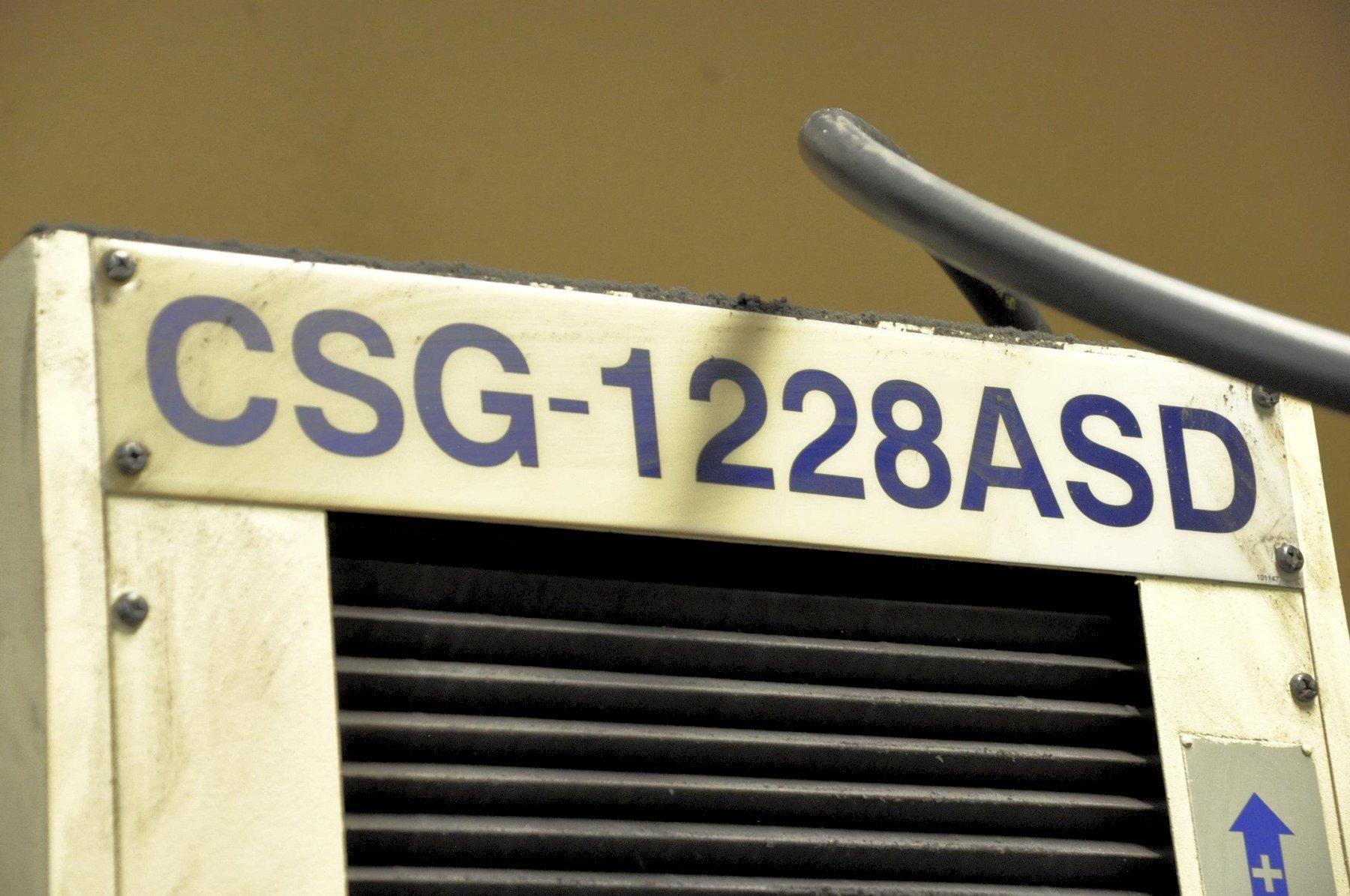

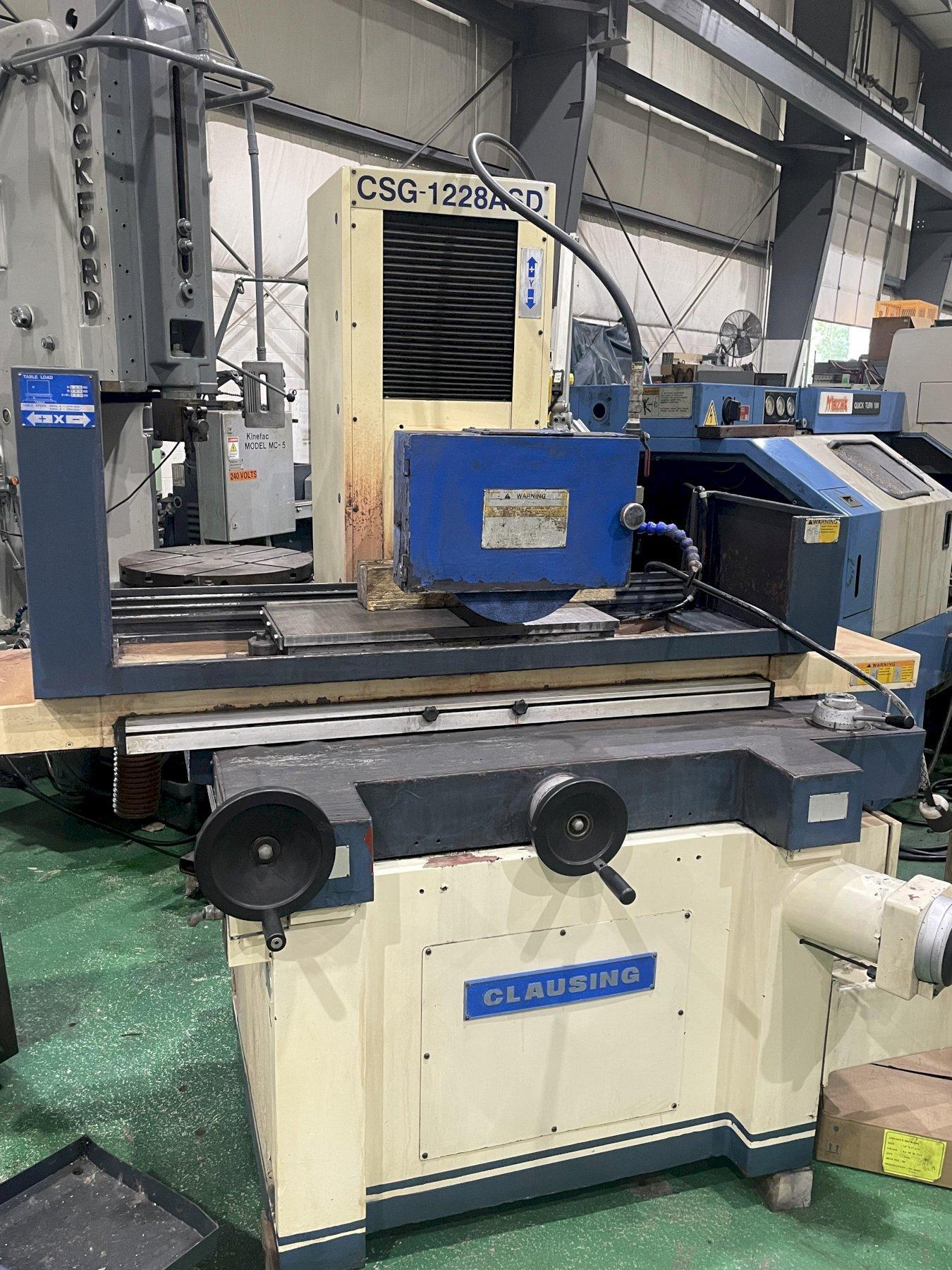

Clausing CSG-1228 ASD Automatic Surface Grinder

Brand
CLAUSING

Model
1228

Type
Grinders, Surface, Recip.

Stock #
63953

Condition
Used

Year
1998

Location
Wixom, Michigan
United States

Specifications

Equipped With

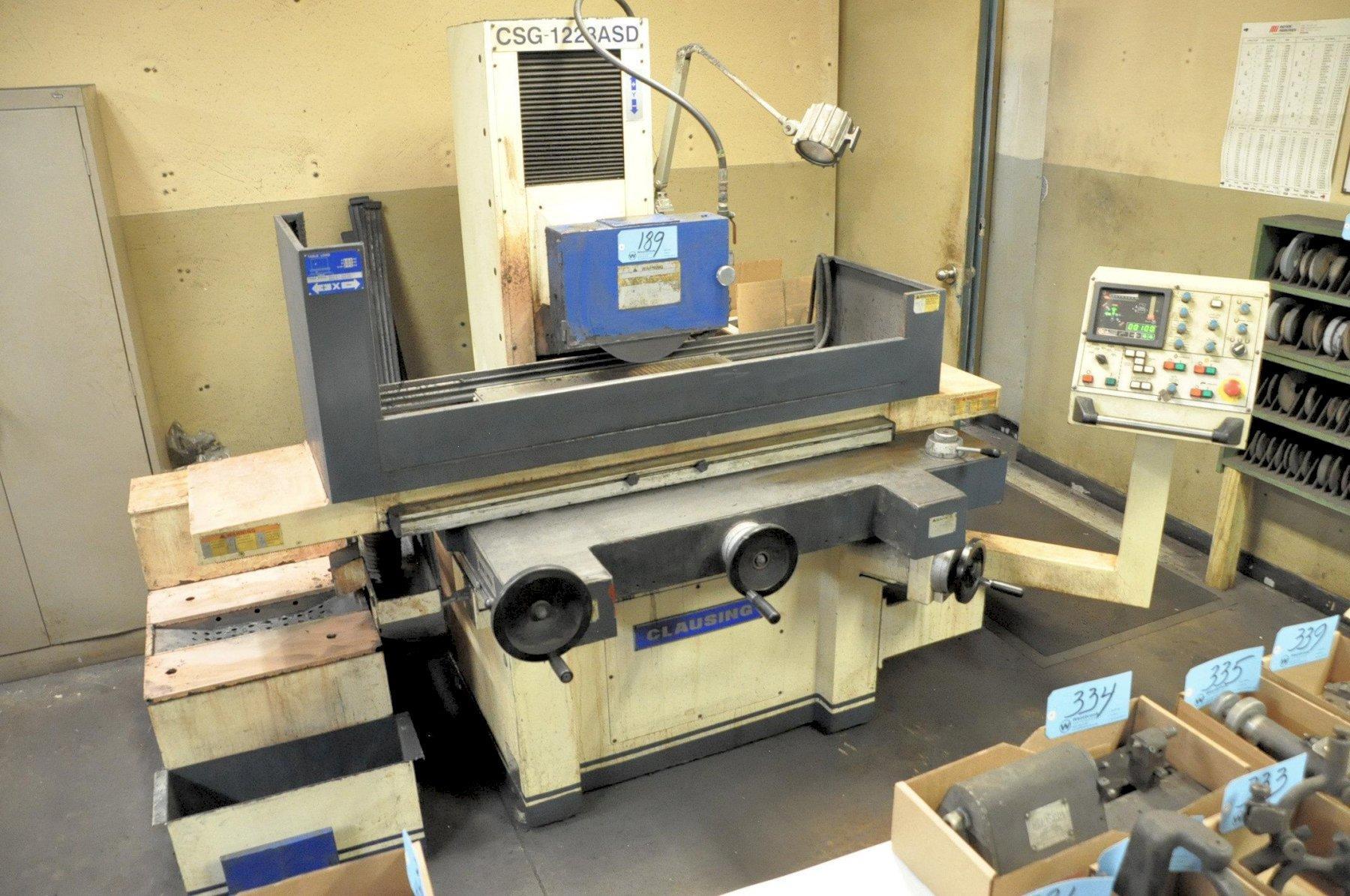

1998 Clausing 1228 Fully Automatic Surface Grinder

Specifications

Machine Style Automatic - Hydraulic
Drive Type Direct Coupled
Table Size (in) 12 x 28
Longitudinal Maximum Travel Hyd (in) 30
Longitudinal Maximum Travel Manual (in) 32.68
Table Speed Infinitely Variable (in/min) 196 - 984
Maximum Cross Auto Traverse Travel (in) 13.78
Maximum Cross Travel Manual (in) 15
Auto Traverse Increment (in) 0.04 – 1
Crossfeed Handwheel Revolution (in) 0.2
Crossfeed Handwheel Graduation (in) 0.0005
Vertical Automatic infeed (in) 0.00005 -0.0025
Step Feed Jog (in) 0.00004

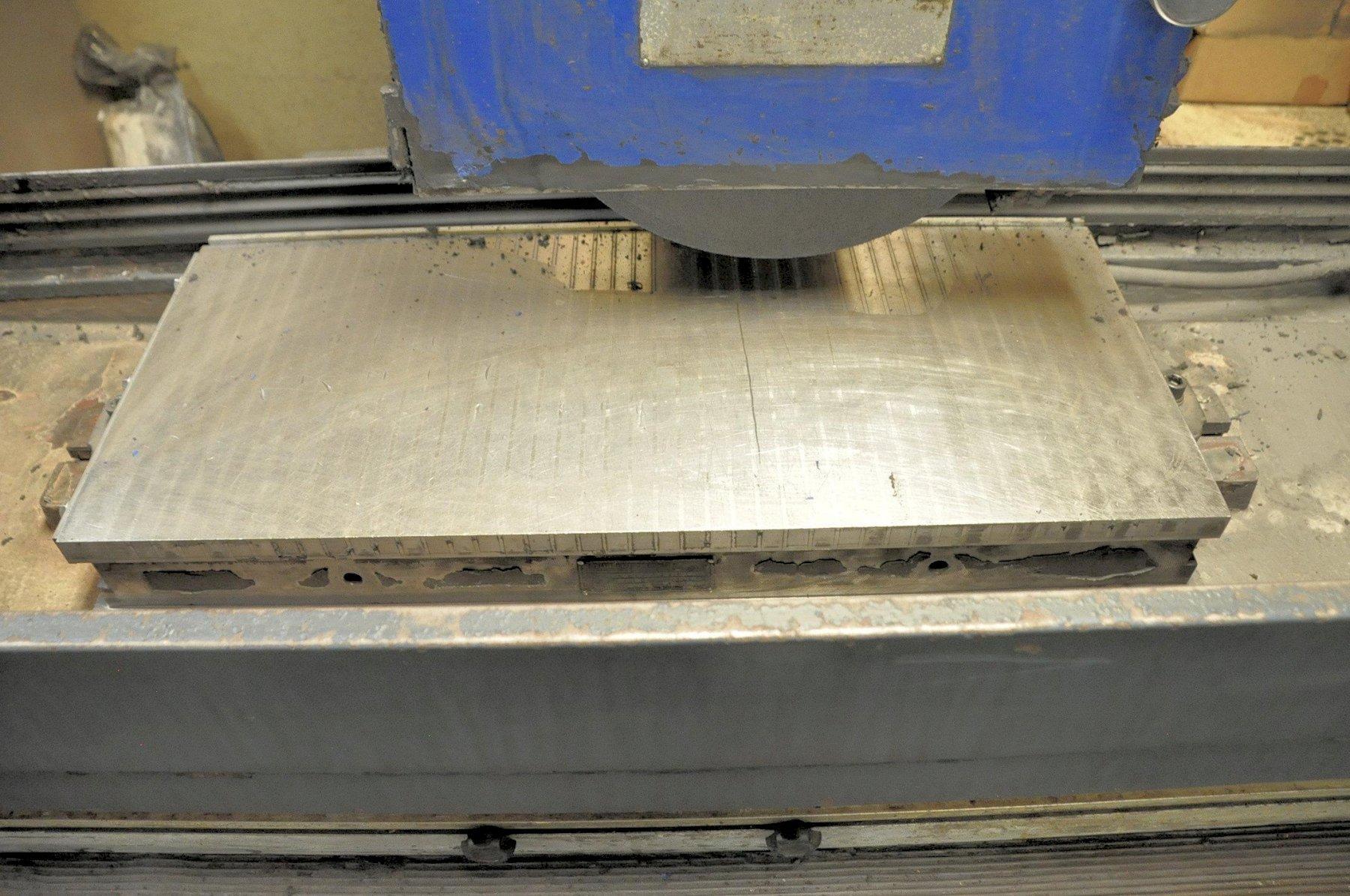

Optional Standard Magnetic Chuck Size (inch) 12 x 28
Grinding Spindle Speed 1750 rpm

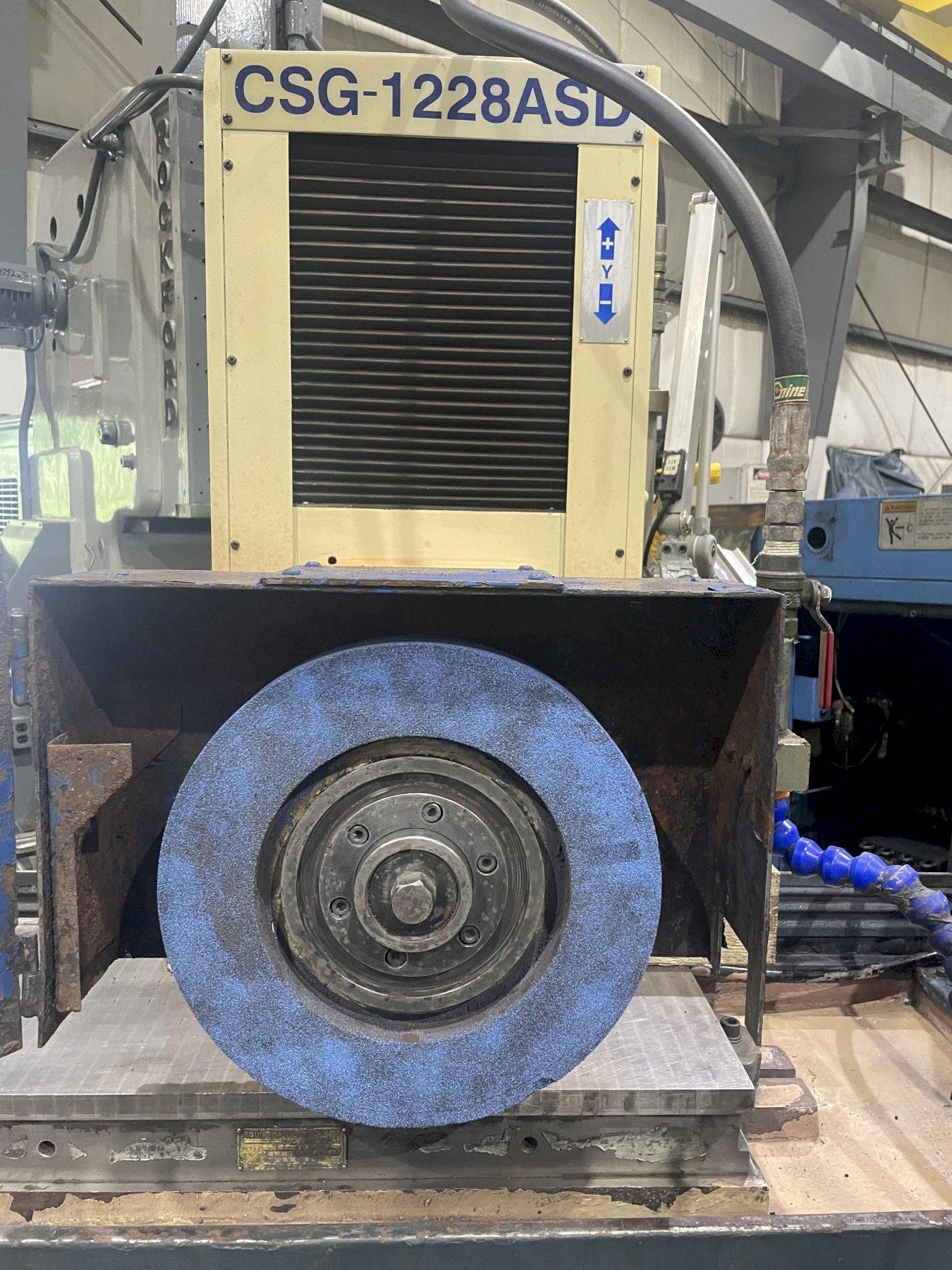

Standard Grinding Wheel Diameter (in) 14
Standard Grinding Wheel Width (in) 2
Standard Grinding Wheel Bore (in) 5
Spindle Motor Horsepower 7.5
Hydraulic Motor Horsepower 3
Crossfeed Motor Horsepower 1
Elevating Motor Horsepower 1/4

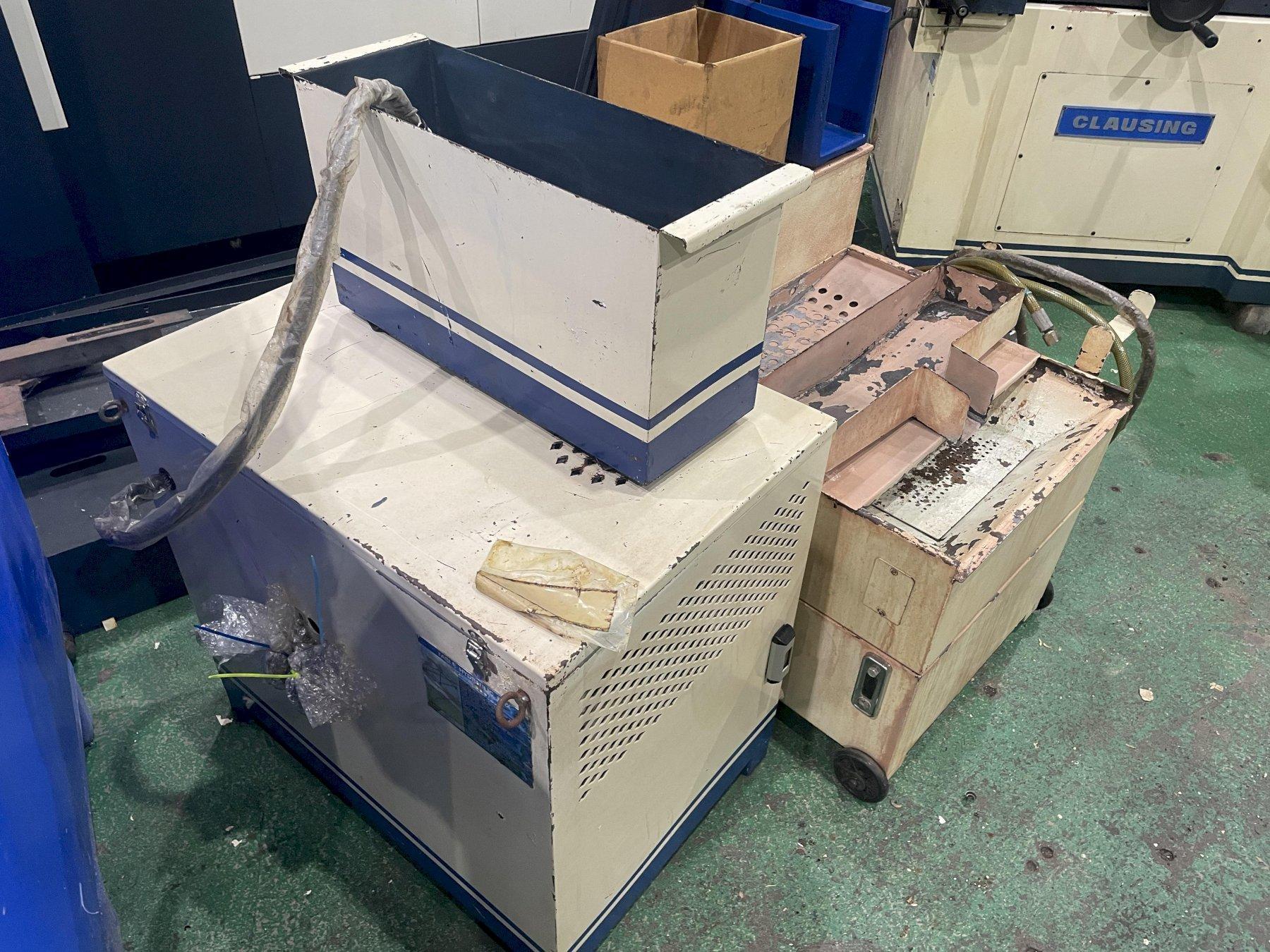

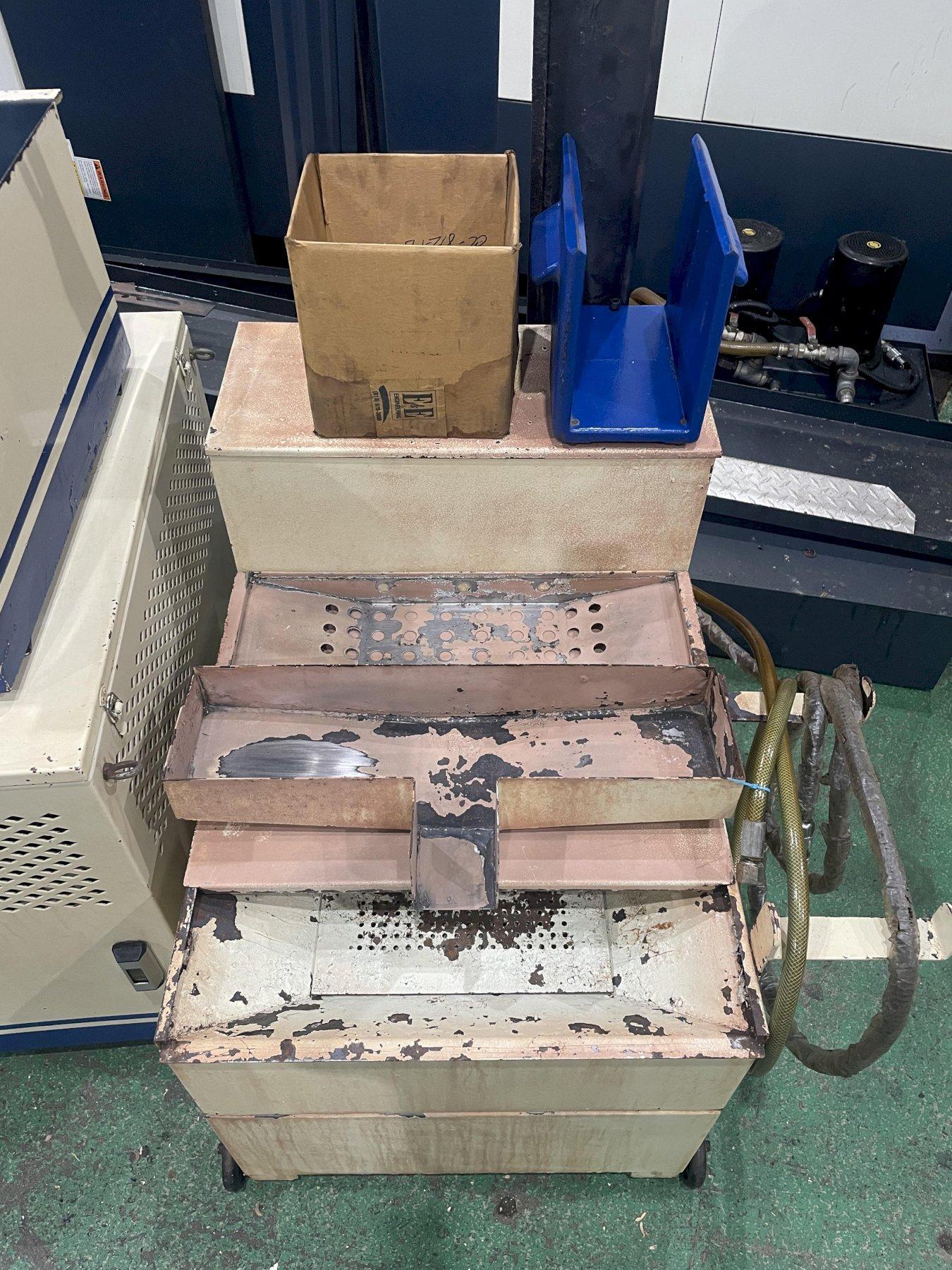

Coolant System YES, Paper Filter
Machine Weight (lbs.) 6,659
Machine Floor Space (L x W x H inch) 116 x 78 x 81

Machine Features:

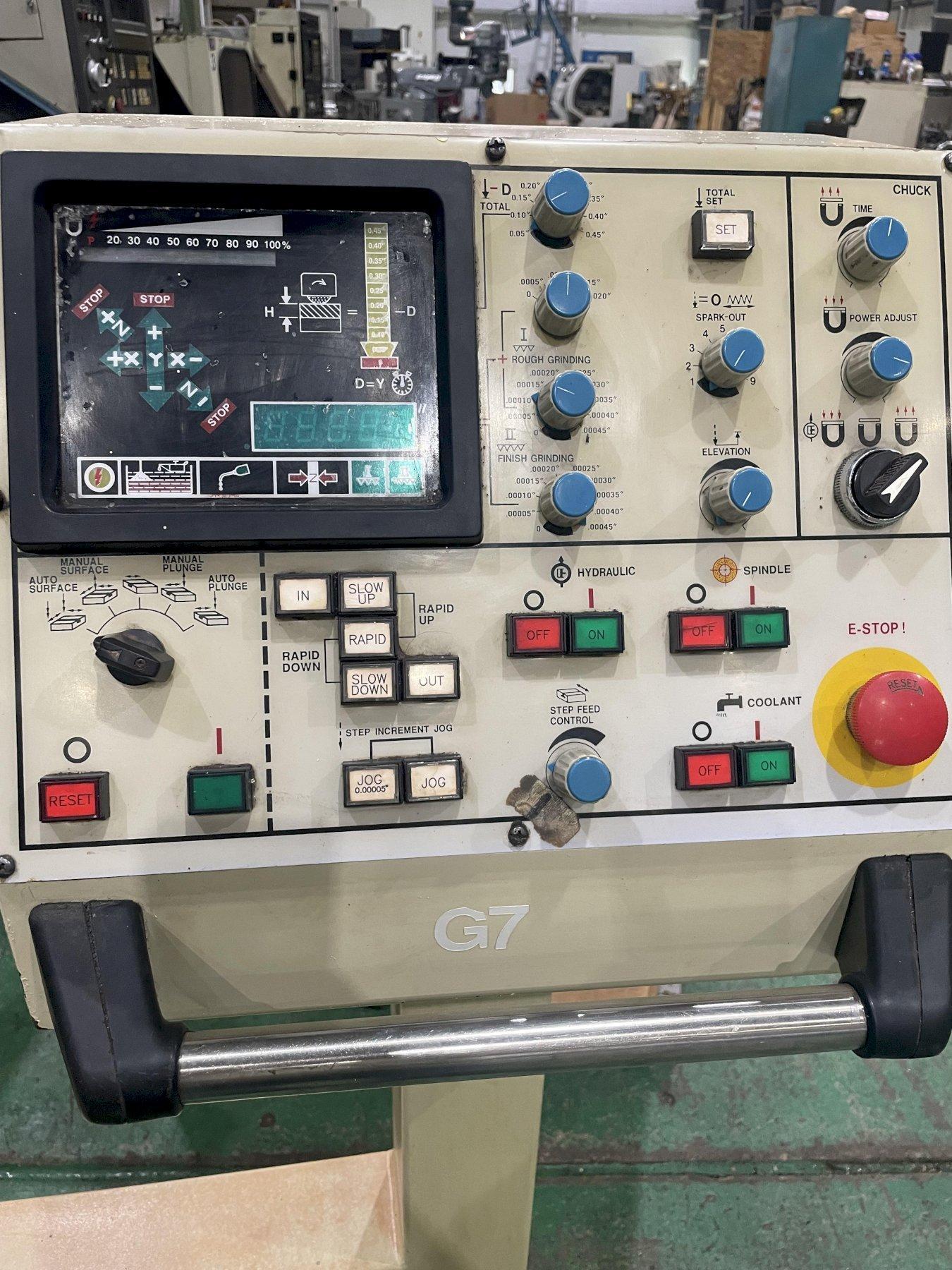

  • Delta PLC with 7.2” color touch screen equipped with conversational program language
  • Pre-settable hydraulic longitudinal table speed control allows operator to pre-set speed rate, allowing for same speed each time you engage the hydraulic feed. Dual throttle valve for 25mm to 25M speeds
  • DC Motorized cross feed with ballscrew
  • Programmable up/down head positioning
  • Built-in proximity switch for easy operation
  • Wheel extraction screw and nut
  • Balancing stand with arbor
  • Leveling screws with blocks
  • Grinding wheel
  • Wheel flange
  • Auto lubrication system
  • Table mounted diamond dresser with diamond
  • Micro Down Feed
  • Chuck Controller w/De-Mag
  • Splash Guard
