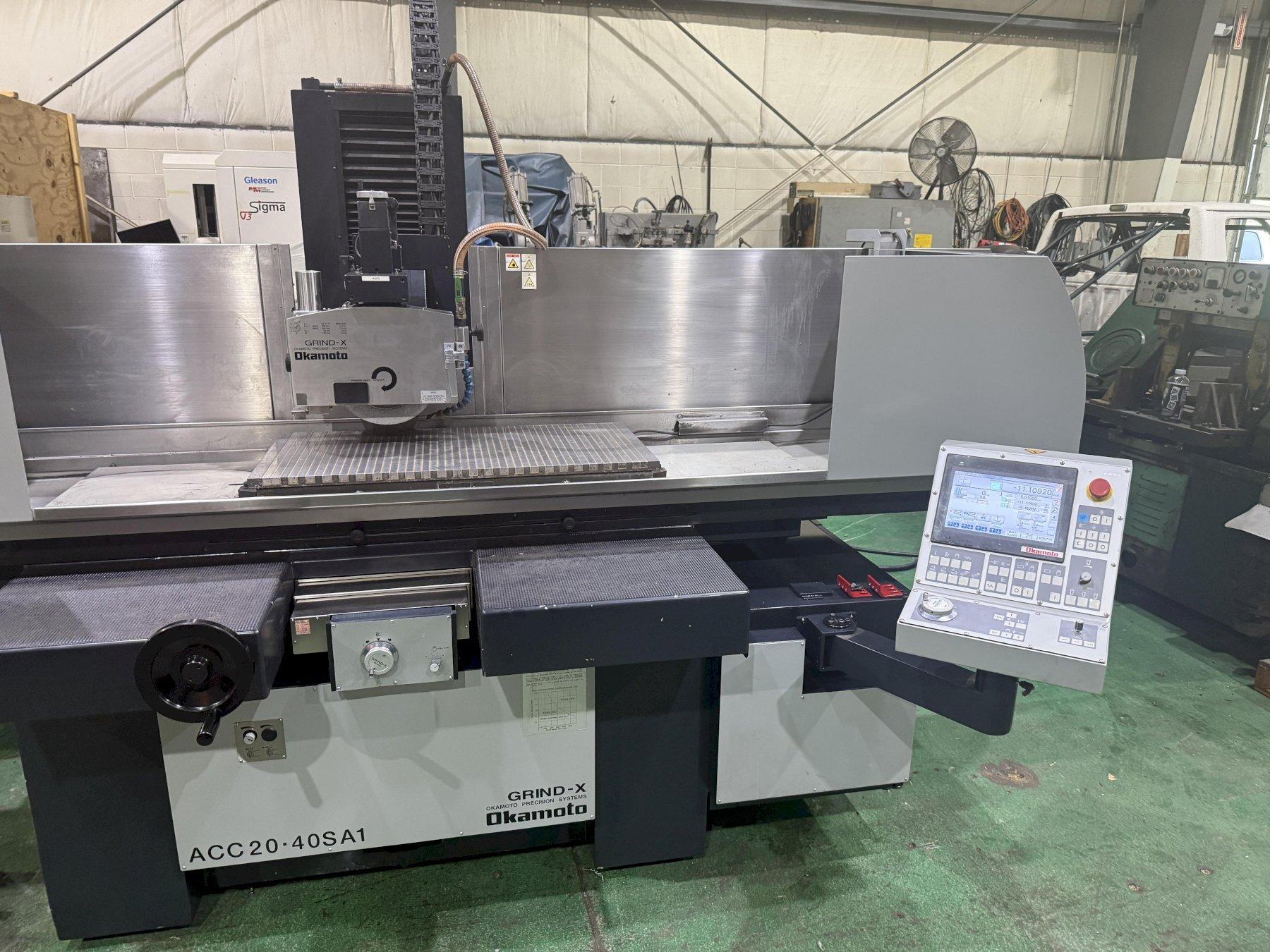

2021 Okamoto ACC20.40SA1 CNC Surface Grinder For Sale

Brand
OKAMOTO

Model
ACC20.40SA1

Type
Grinders, Surface, Horizontal, Recip Table, CNC

Stock #
N/A

Condition
N/A

Year
2021

Location
City Not Specified, Michigan
United States

Request Quote

2021 Okamoto ACC20.40SA1 CNC Surface Grinder For Sale

Specifications

CNC Control	yes
Type of CNC Control	Okamoto MDI
Table-L	41.3 inches
Table-W	20 inches
Max Table Load	1540 pounds
Chuck Size	40" x 20"
X-Axis Travel	45.3 inches
Y-Axis Travel	21.3 inches
Z-Axis Travel	21.5 inches
Grinding Wheel Dimensions	12" x 1.5" x 5"
Grinding Wheel Speed (rpm)	1,800 rpm
Grinding Wheel Spindle Motor (hp)	10 hp
Machine Dimensions	171" x 101" x 84"
Machine Weight	11500 pounds

Equipped With

- MACHINE VIDEO - Click Here
- Okamoto MDI Touchscreen Control 10" Display
- Saddle Type Surface Grinder
- Paper Coolant Filtration System
- Teach Function for Crossfeed Position
- AC Driven Vertical Feed
- AC Driven Crossfeed
- Auto Wheelhead Retract
- Automatic Overhead Wheel Dresser w/Compensation
- Kanetsu Electro-Magnetic Chuck
- Shift Plunge Rough Grinding Cycle
- Selectable Rough/Fine Infeed Grinding Method
- 10 hp Upgraded Grinding Wheel Motor
- Grinding Wheel Balancing Stand w/Arbor

The ACC-SA1 Series is a next generation MDI Control surface grinder that provides the robust design & construction, ease of use and standard high performance features that today’s production shop requires. Double-V table ways assure smooth, accurate tracking. The fully supported table eliminates overhang for superb accuracy.
