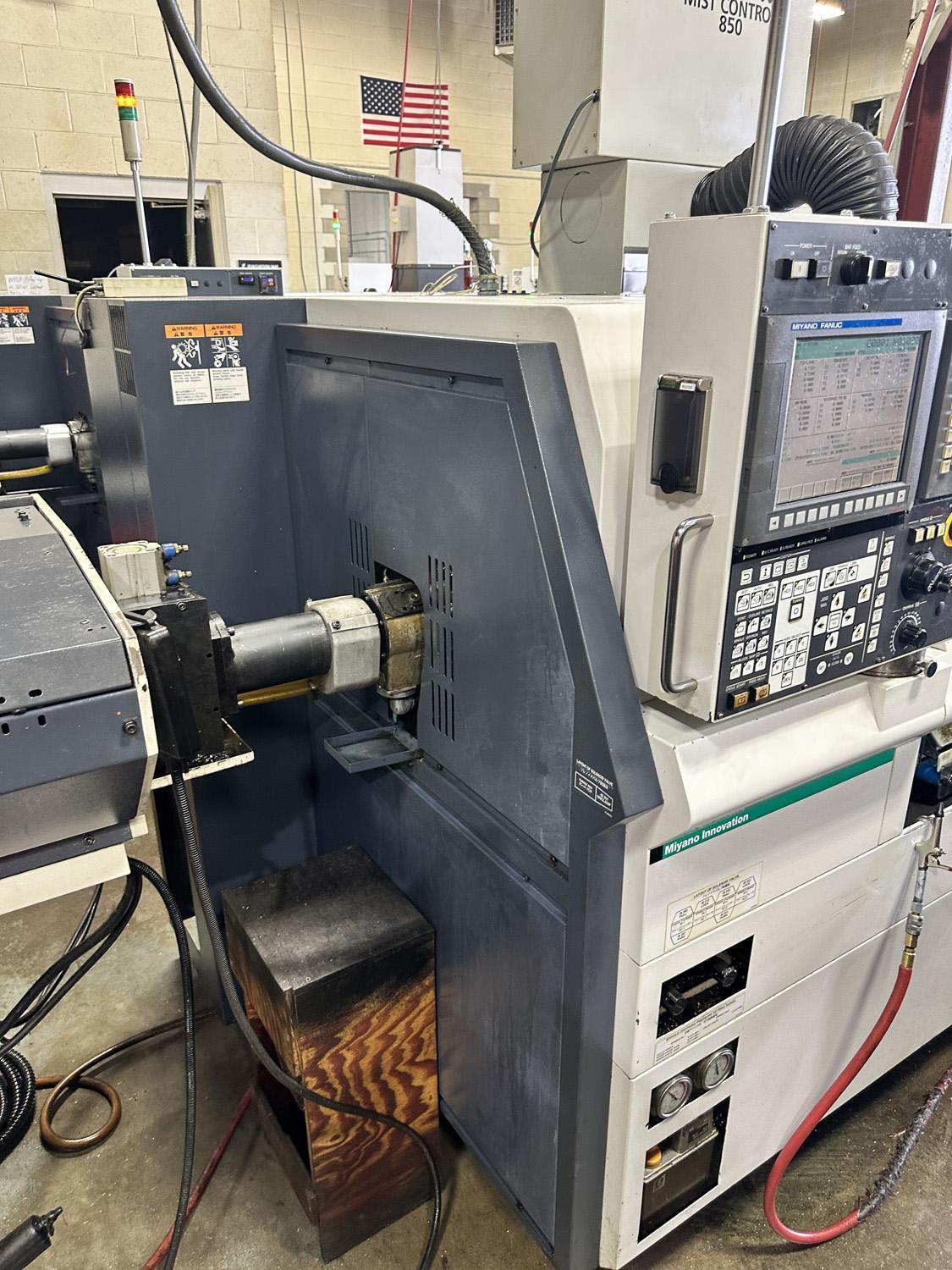

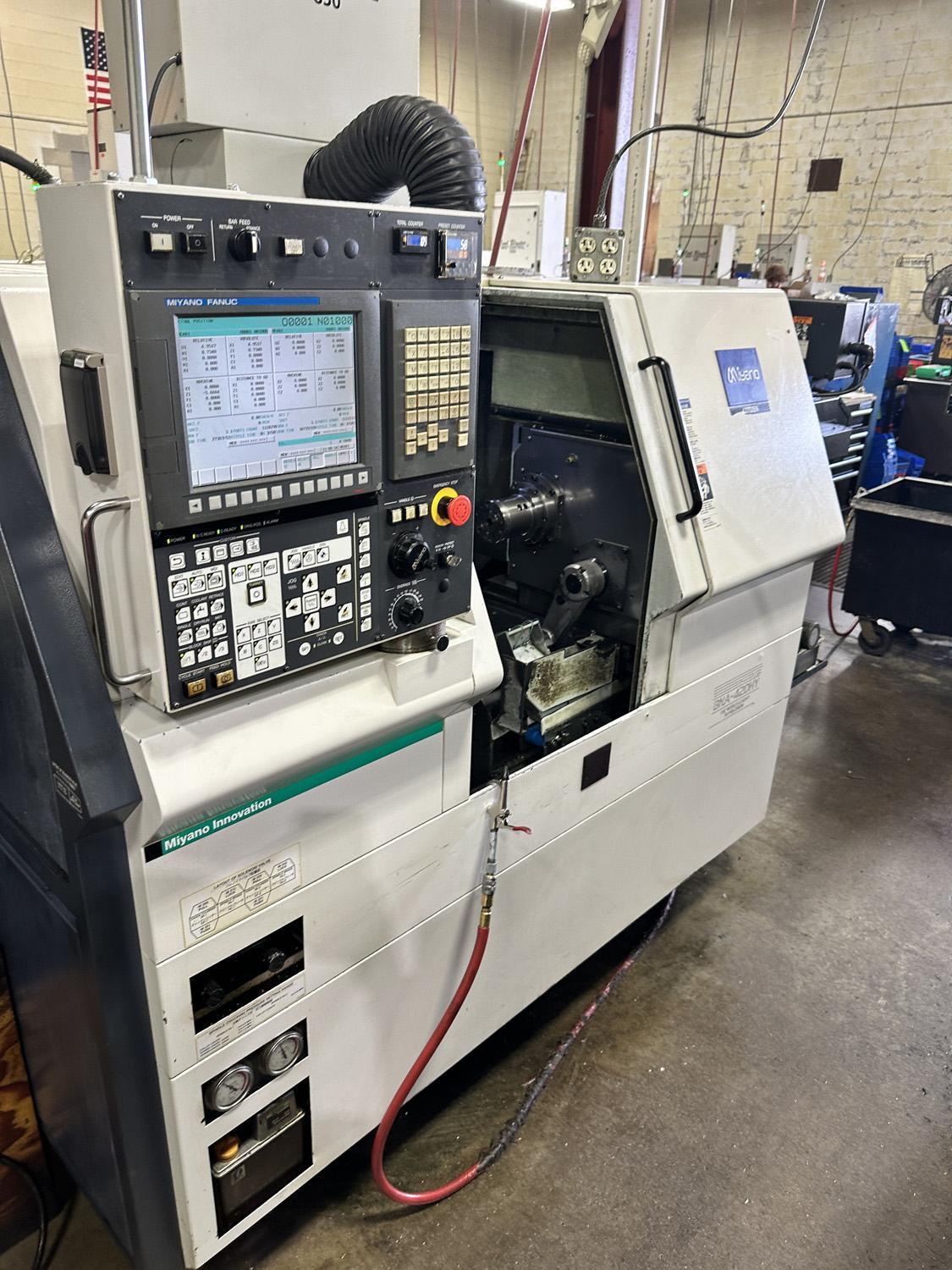

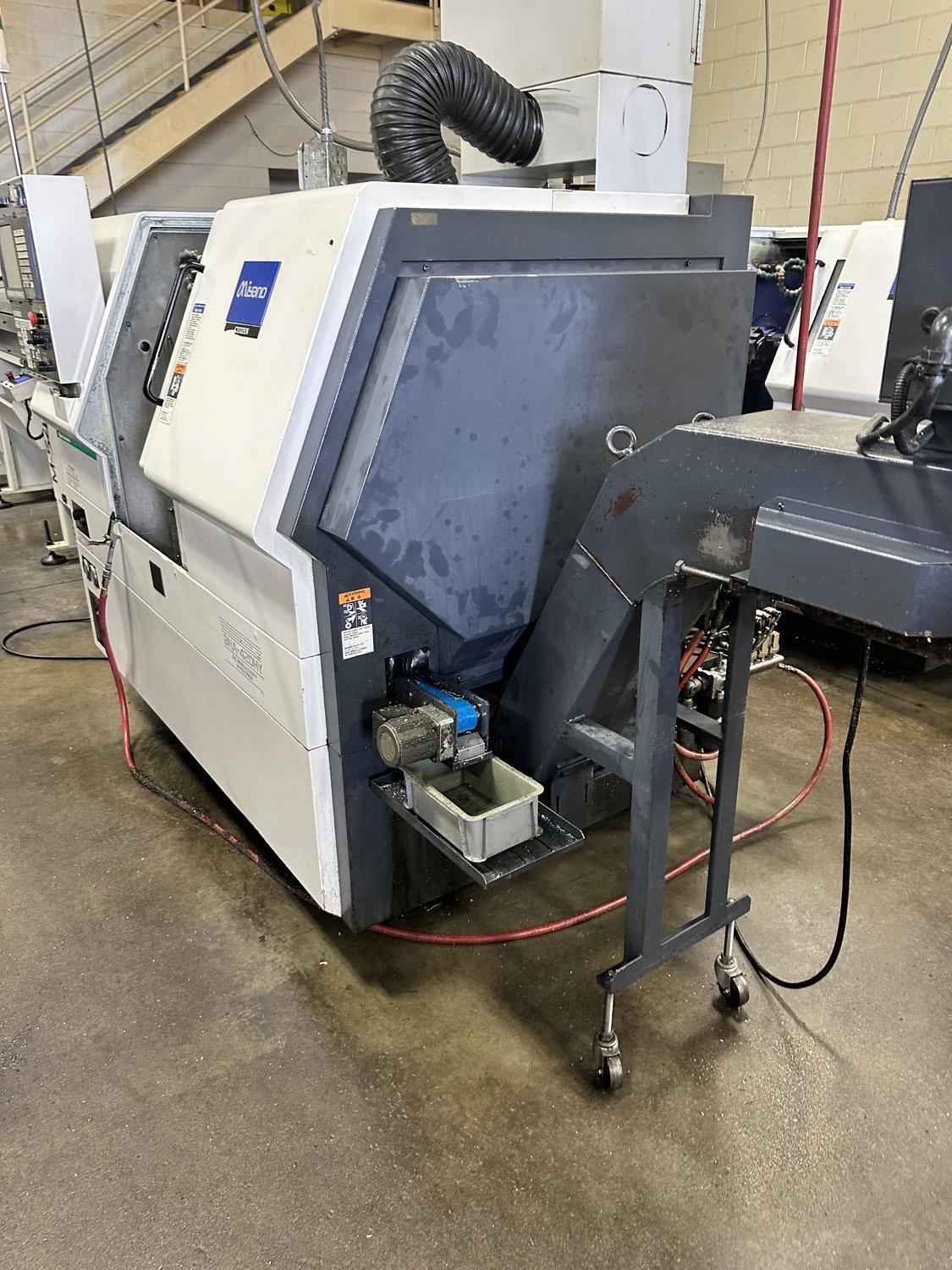

2013 Citizen Miyano BNA-42DHY

Brand
N/A

Model
BNA-42-DHY2

Type
Lathes, CNC (3-Axis or More)

Stock #
64045

Condition
Like New

Year
2013

Location
NOVI, Michigan
United States

Specifications

CNC Control yes

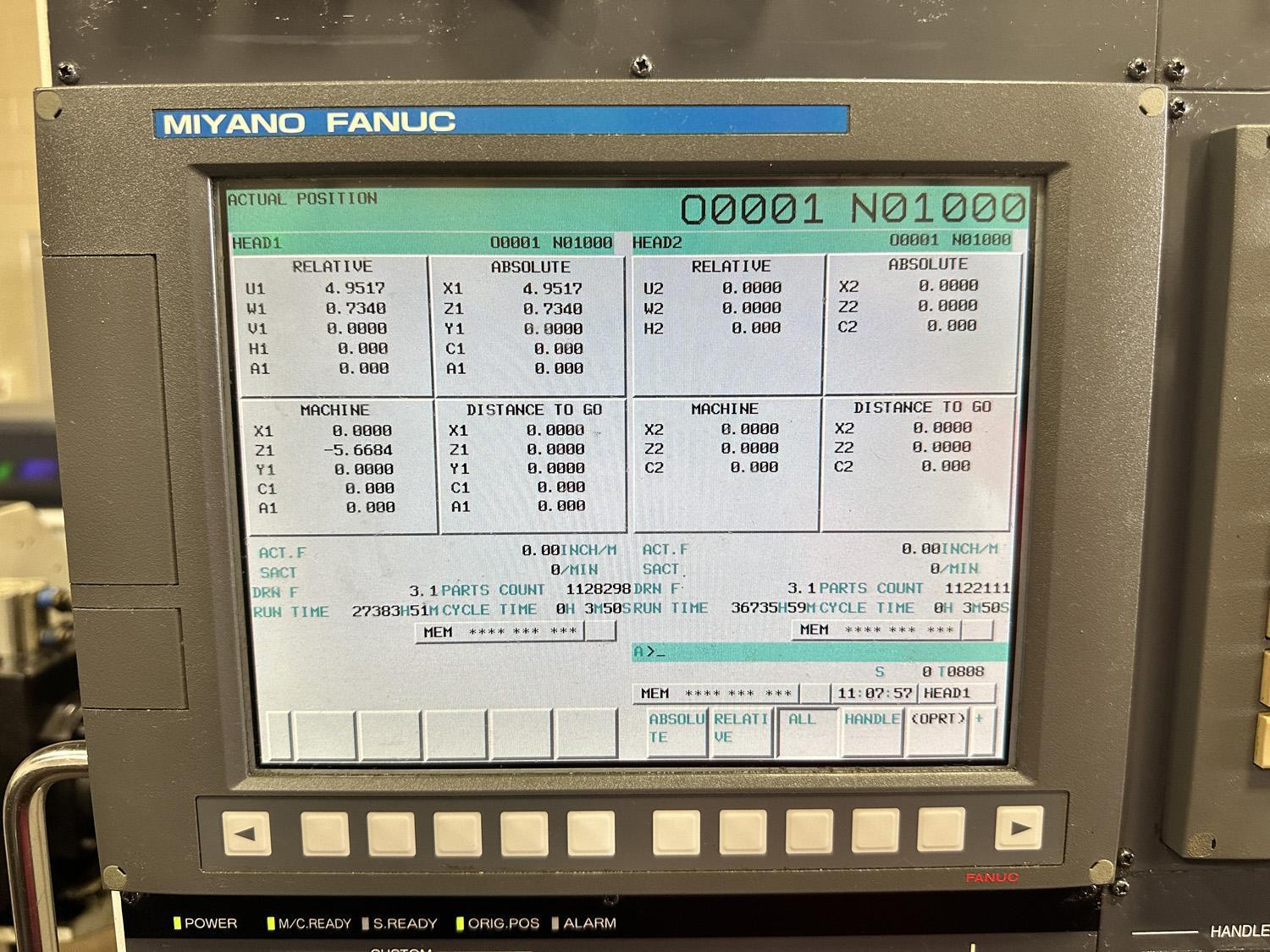

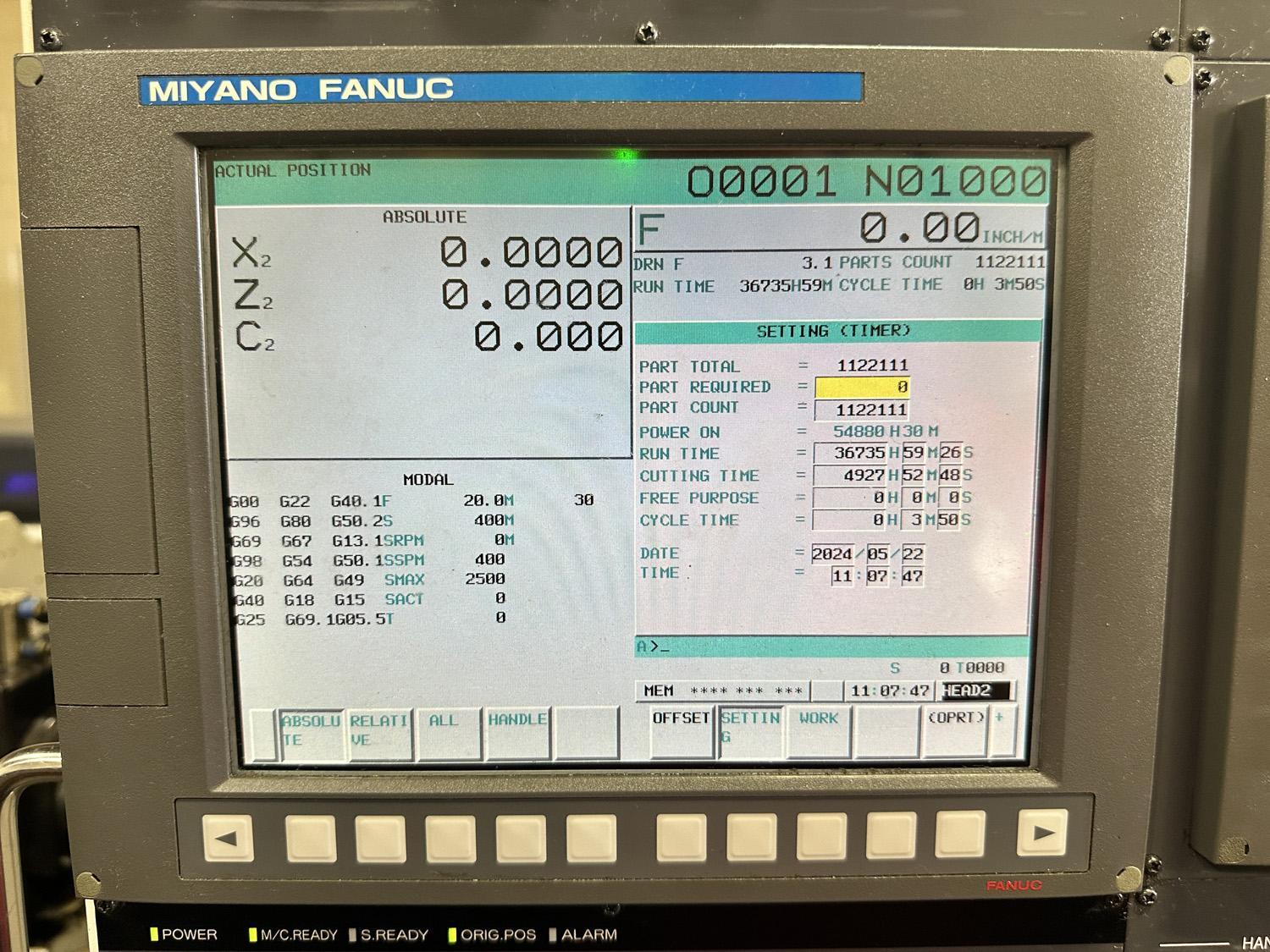

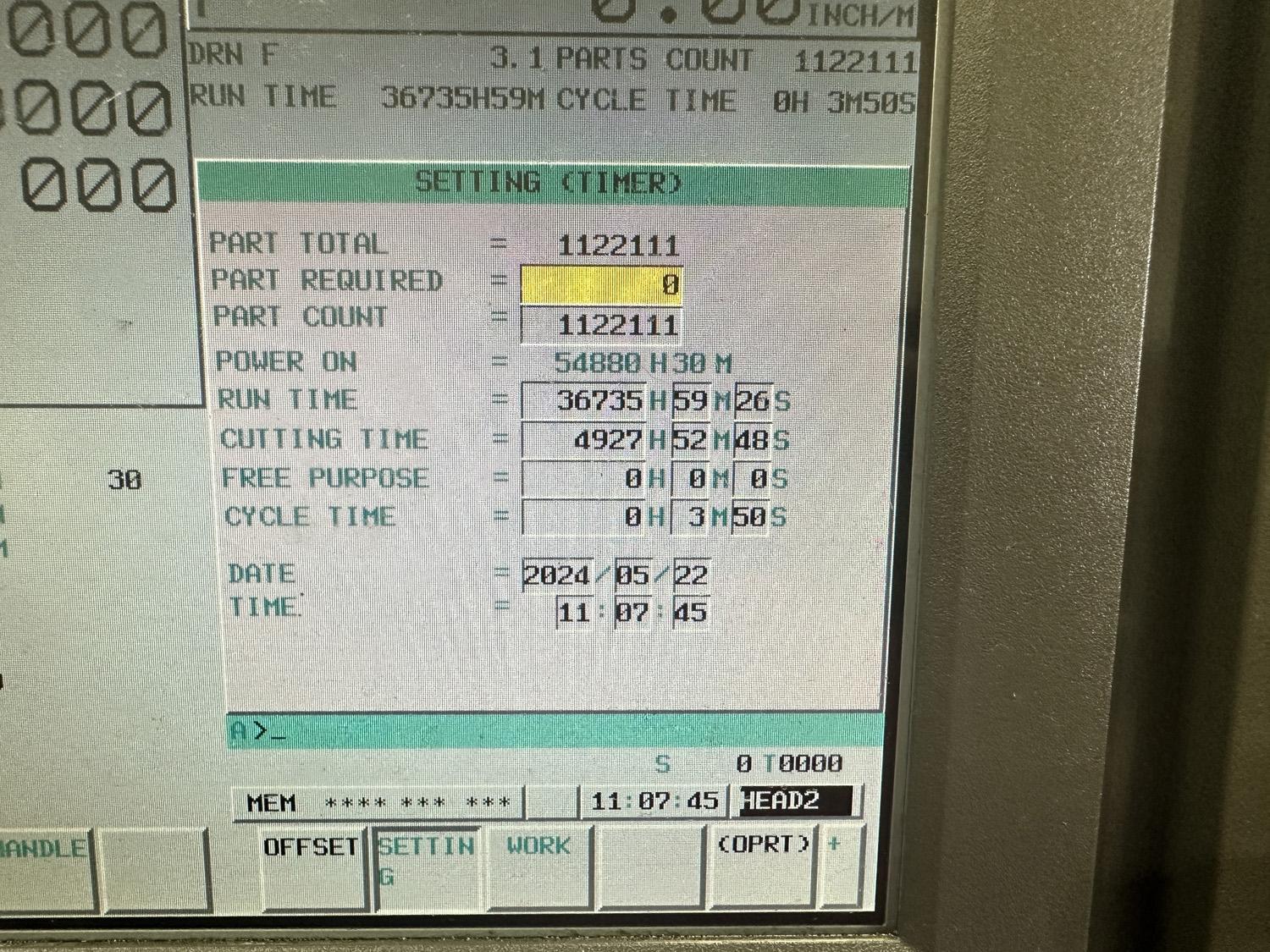

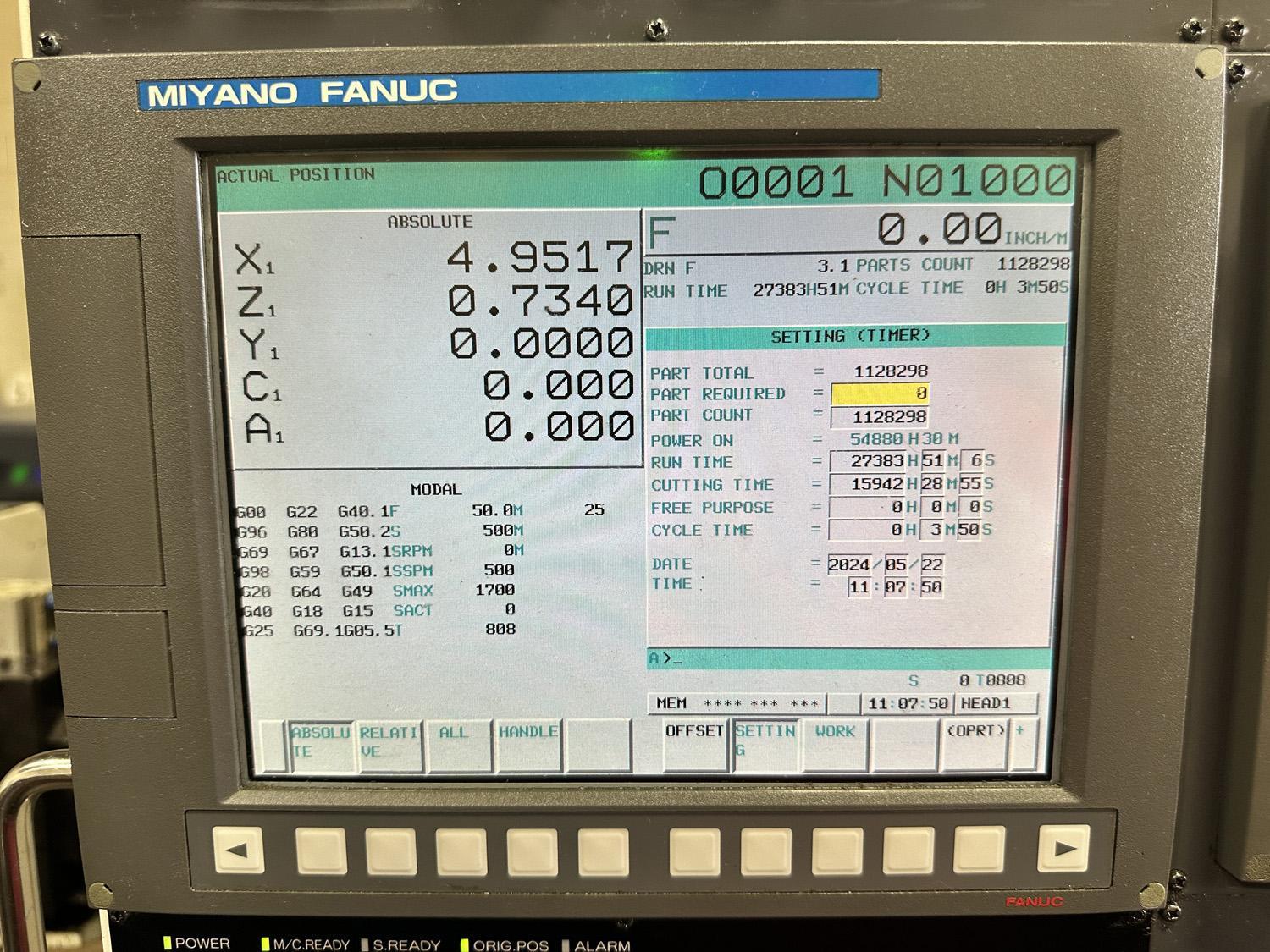

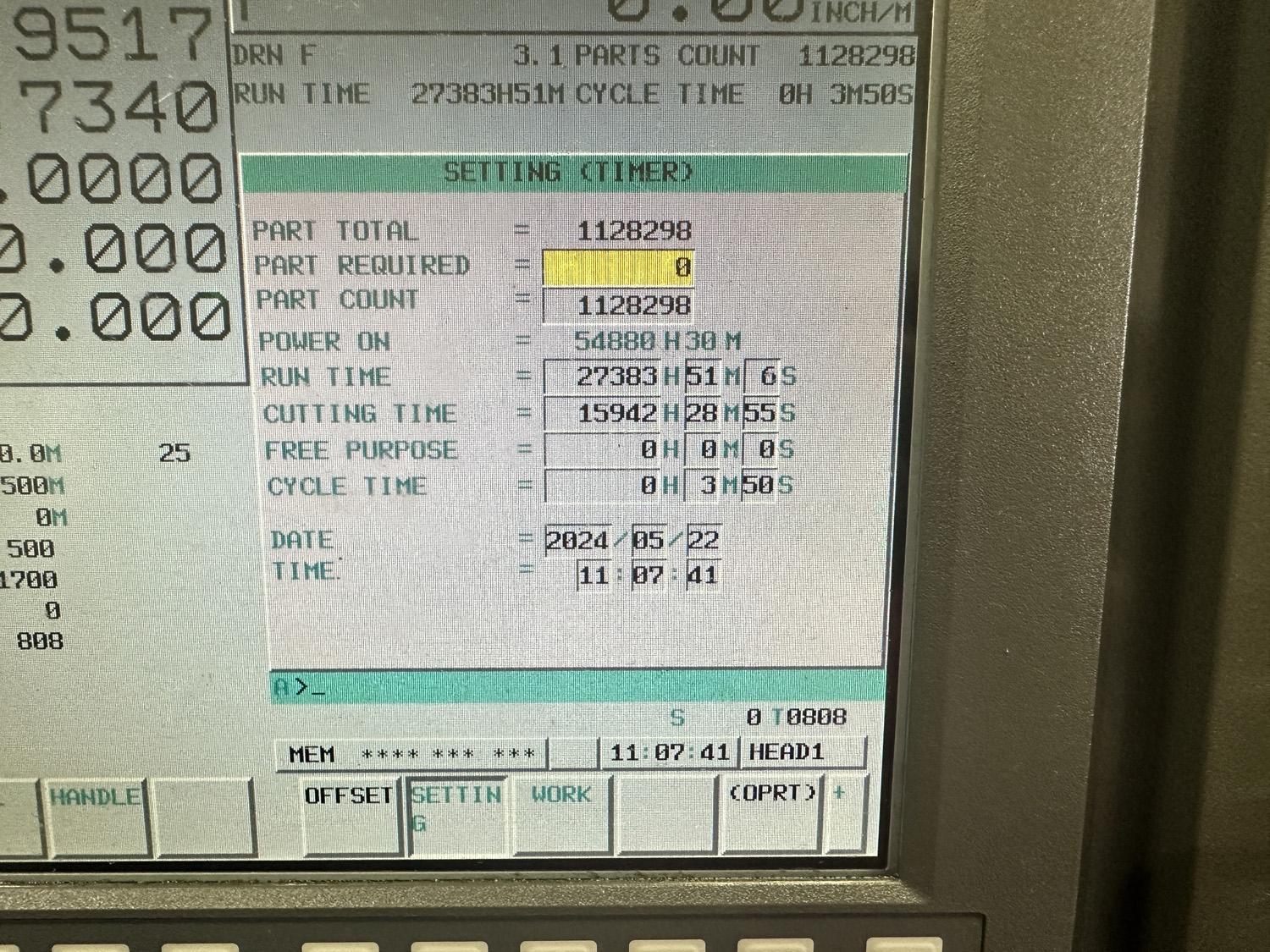

Type of CNC Control Miyano Fanuc 0i-TD
# Axis 7
Live Milling (Yes / No) yes

Equipped With

Chuck Size 5 in 127.00 mm
Center Distance 3.94 in 100.08 mm
Bar Capacity 1.65 in 41.91 mm
X Axis Travel 5.51 in 139.95 mm
X2 Travel 5.51 in 139.95 mm
Z Axis Travel 9.25 in 234.95 mm
Z2 Travel 12.20 in 309.88 mm
Y-Axis Travel 2.75" +/- 1.37" 2.75" +/- 1.37"
C1/C2 Axis Index 0.001° 0.001°
Y Axis yes yes
Spindle Nose Flat Flat
Spindle Speed 6,000 rpm 6,000 rpm
Main Motor 10 hp 10 hp

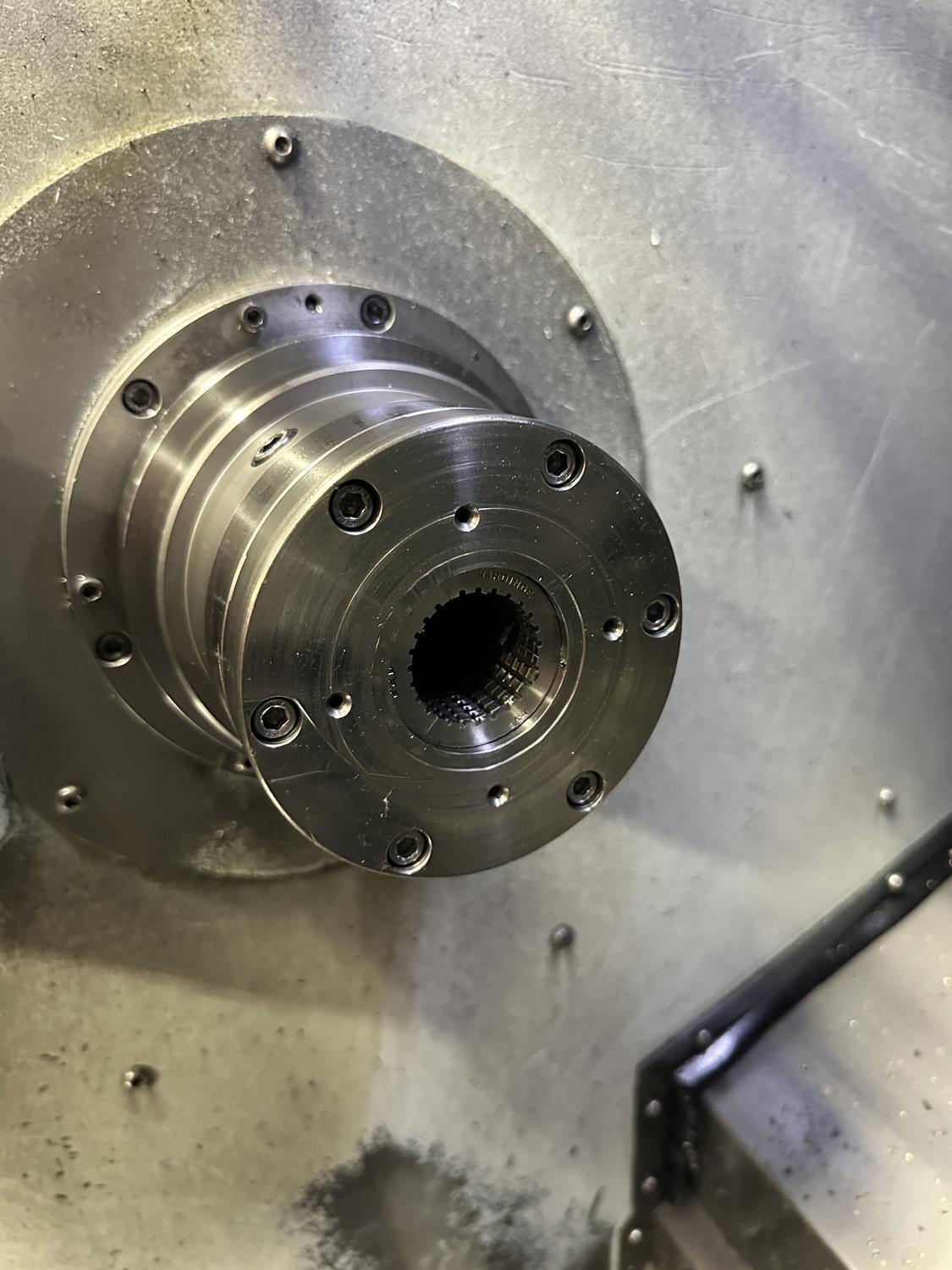

Sub Spindle yes yes
Sub Spindle Chuck Size 5 in 127.00 mm
Sub Spindle Speed 5,000 rpm 5,000 rpm
Sub Spindle Motor 7.3 hp 7.3 hp

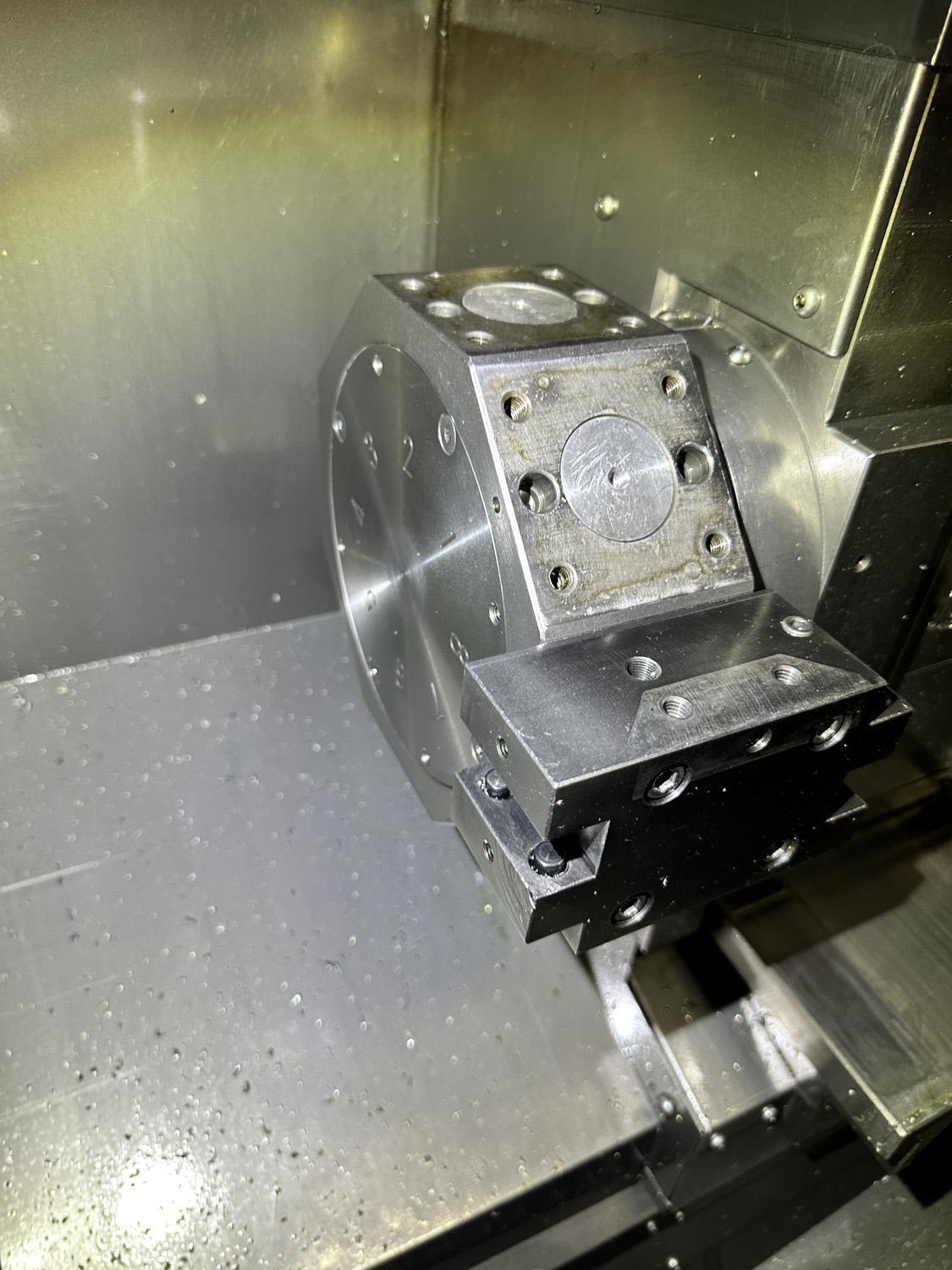

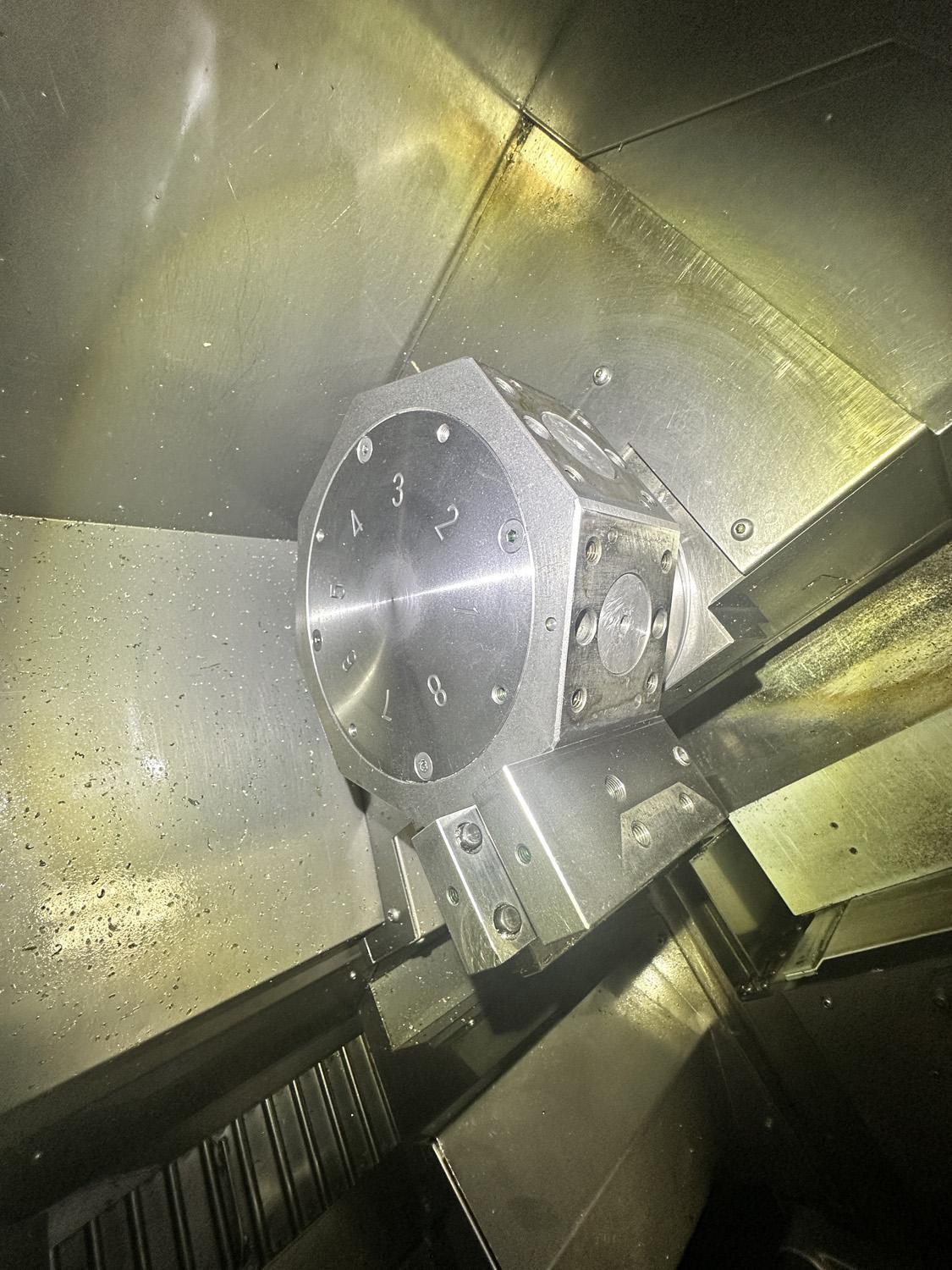

Live Tooling yes yes
Live Tooling Speed 5,000 rpm 5,000 rpm
Live Milling Motor 3.7 hp 3.7 hp
Machine Weight 6400 lb 2,902.99 kg
EQUIPPED WITH

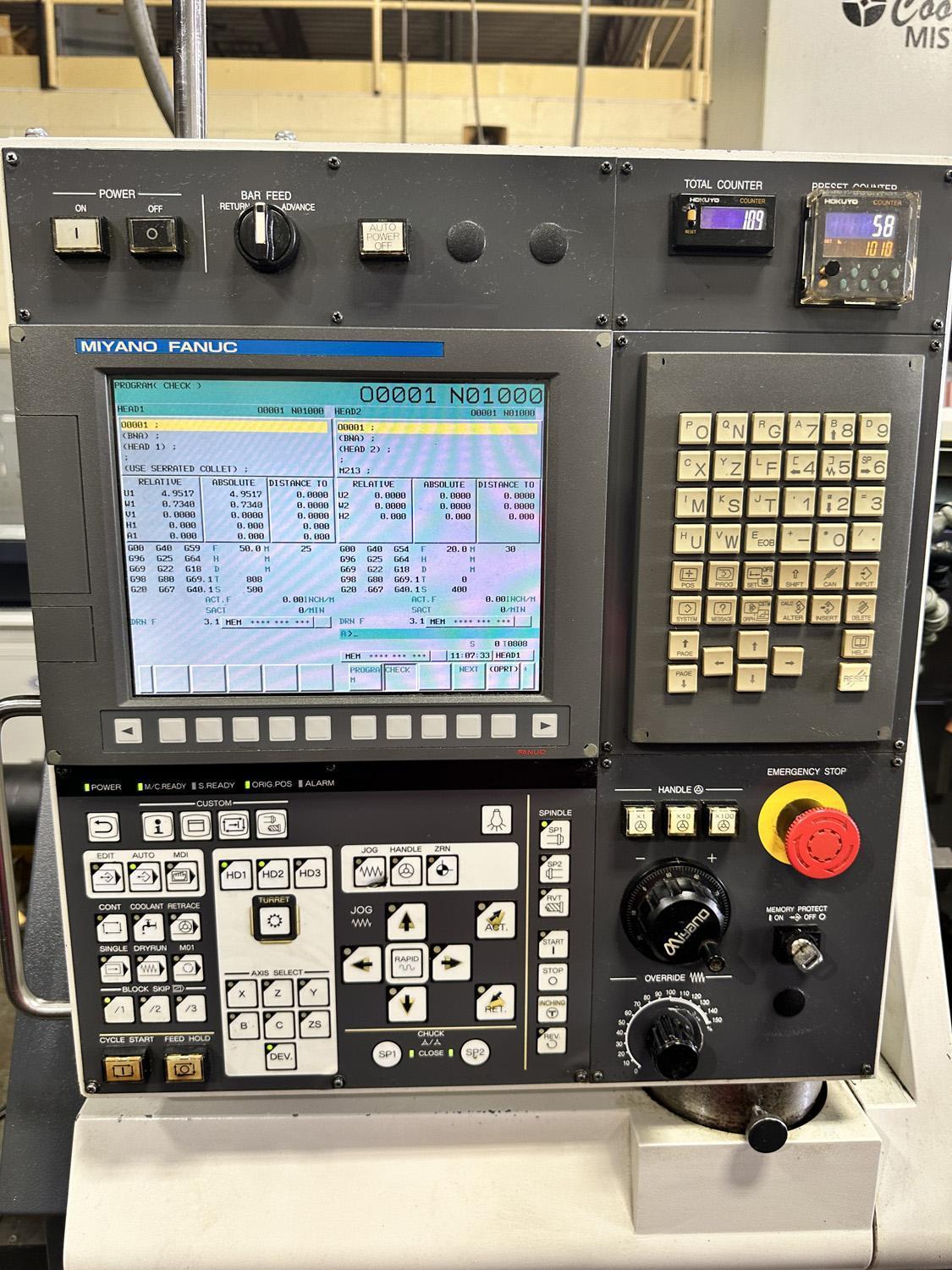

- Miyano Fanuc 0i-TD CNC Control

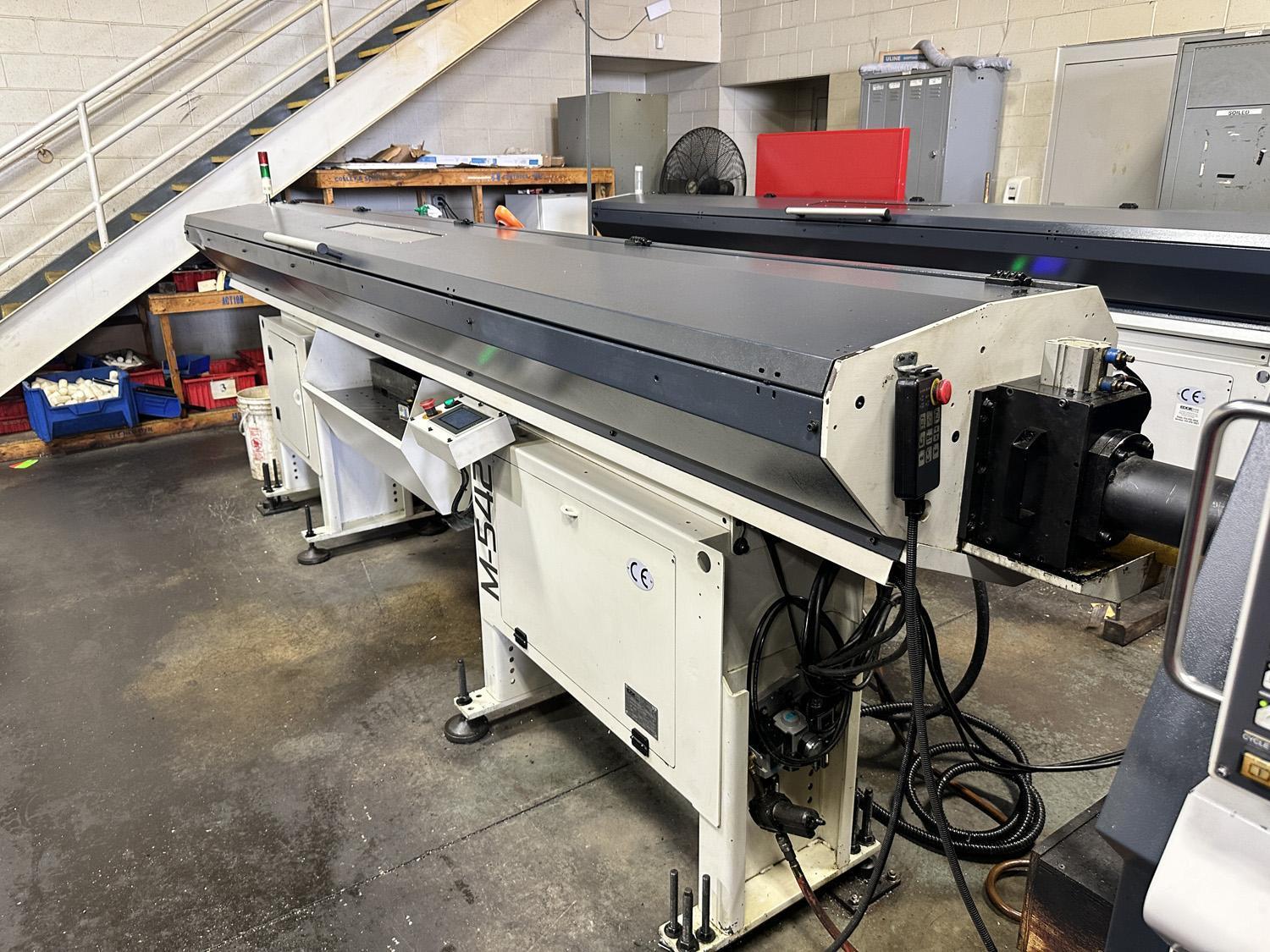

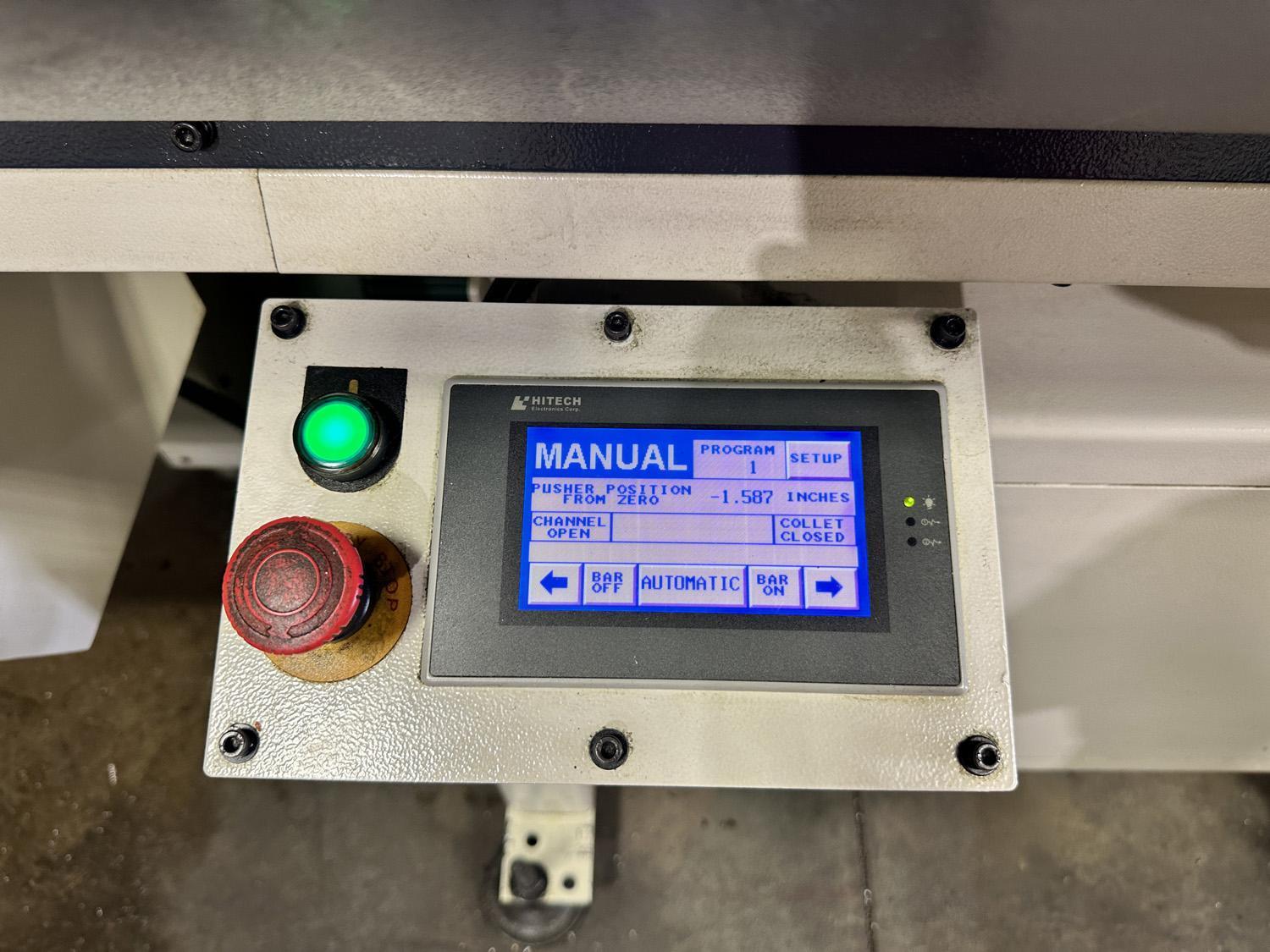

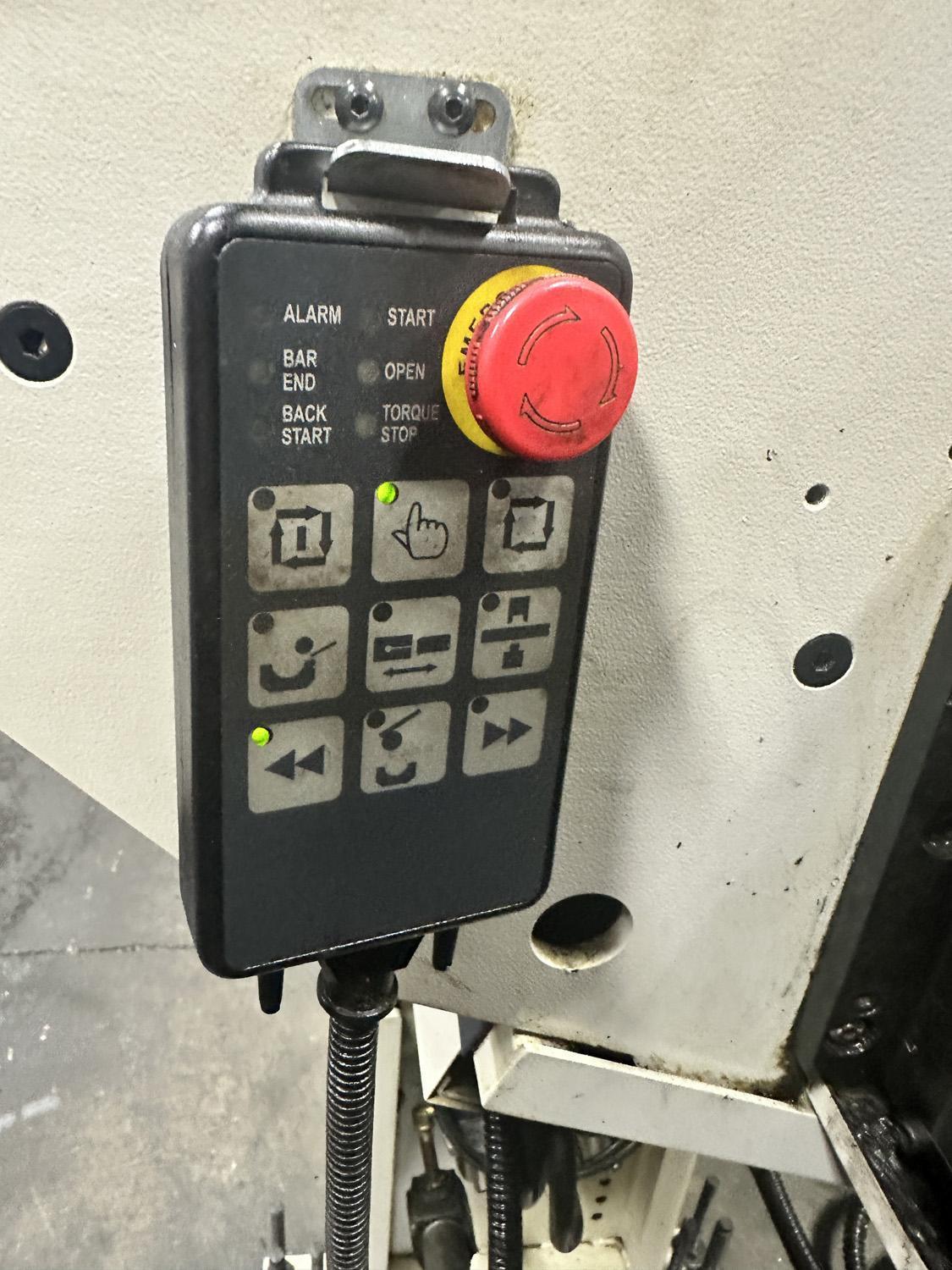

- Edge Technologies M-542 Bar Feeder

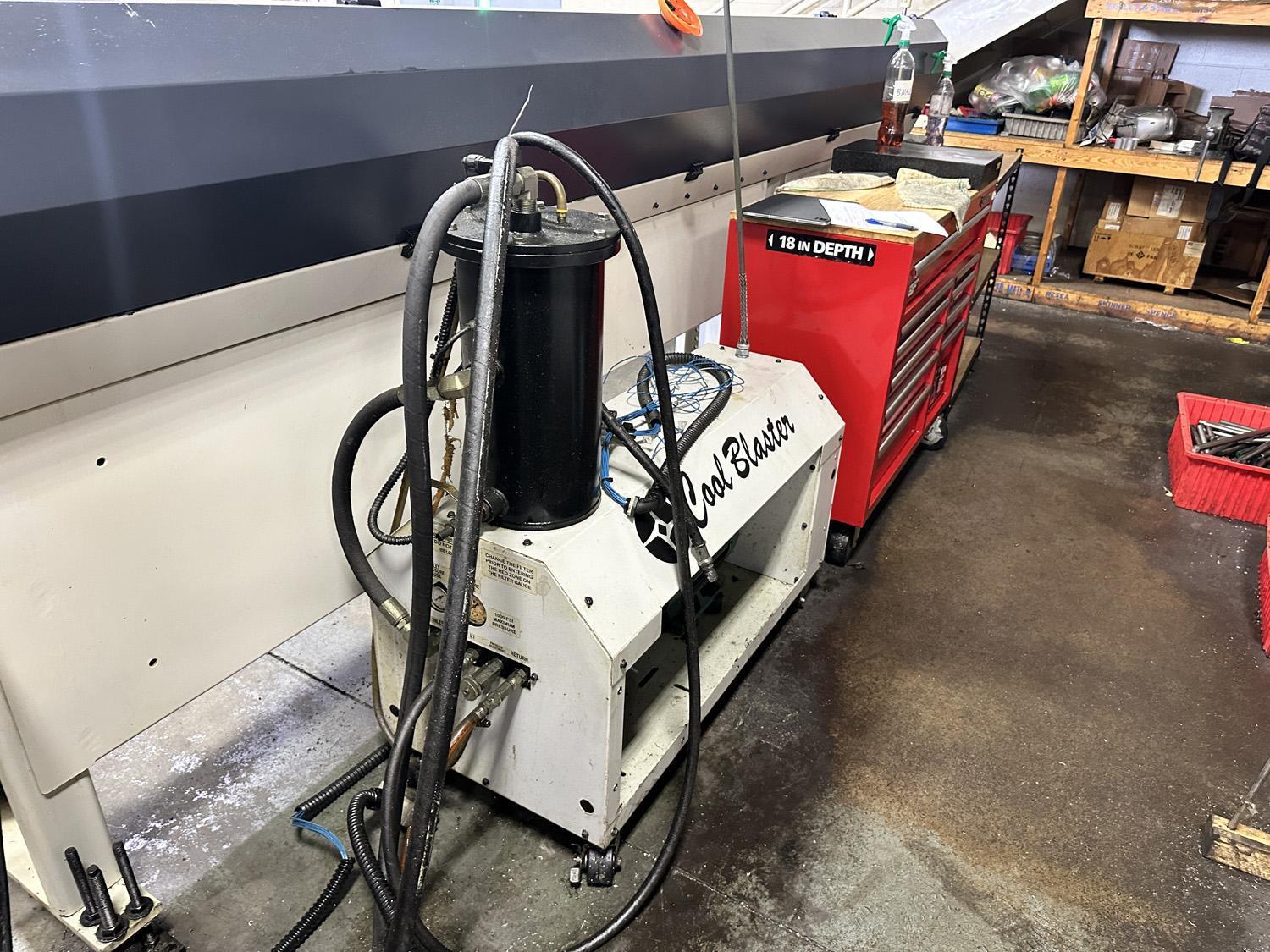

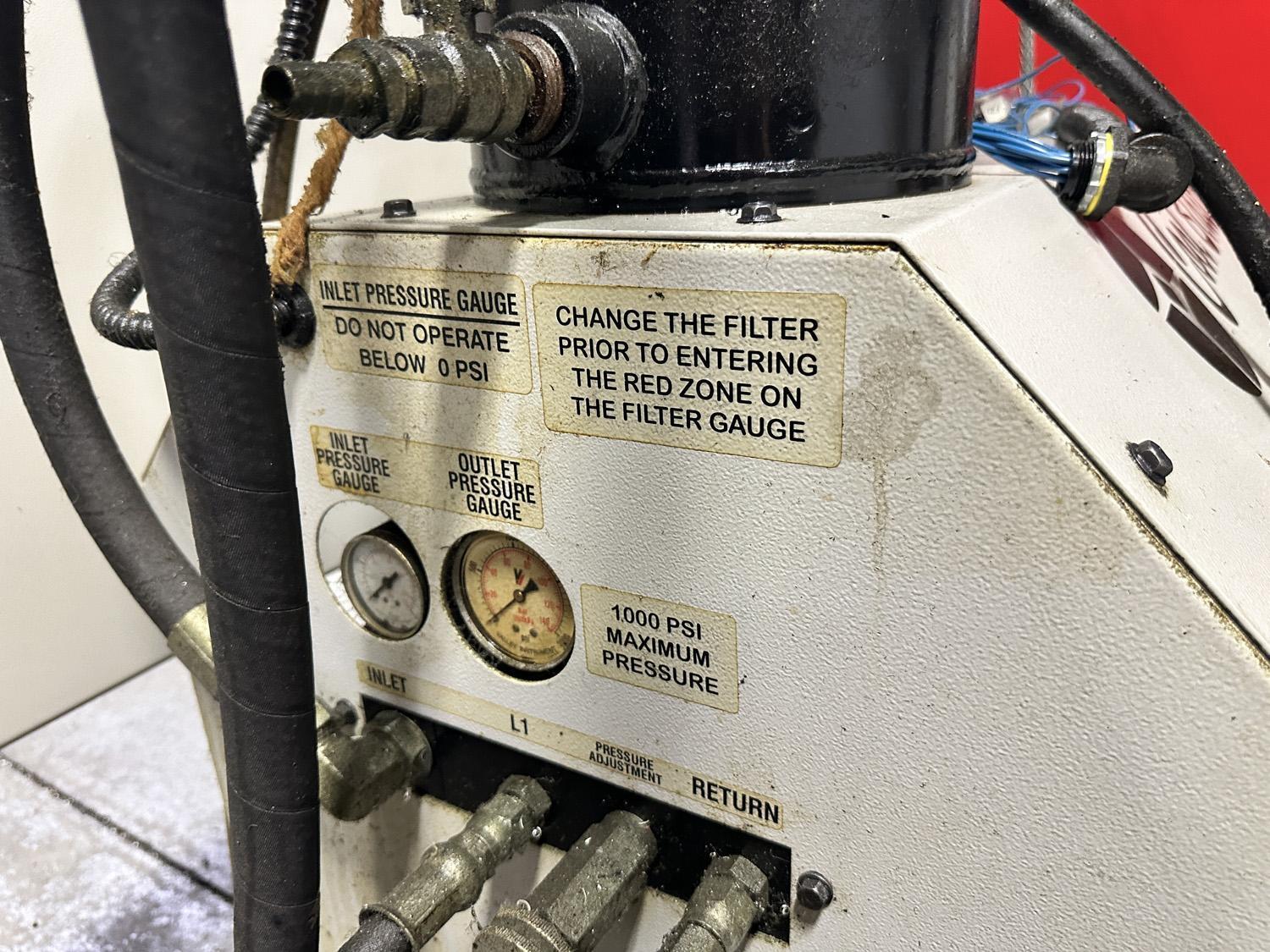

- Cool Blaster Coolant Thru System

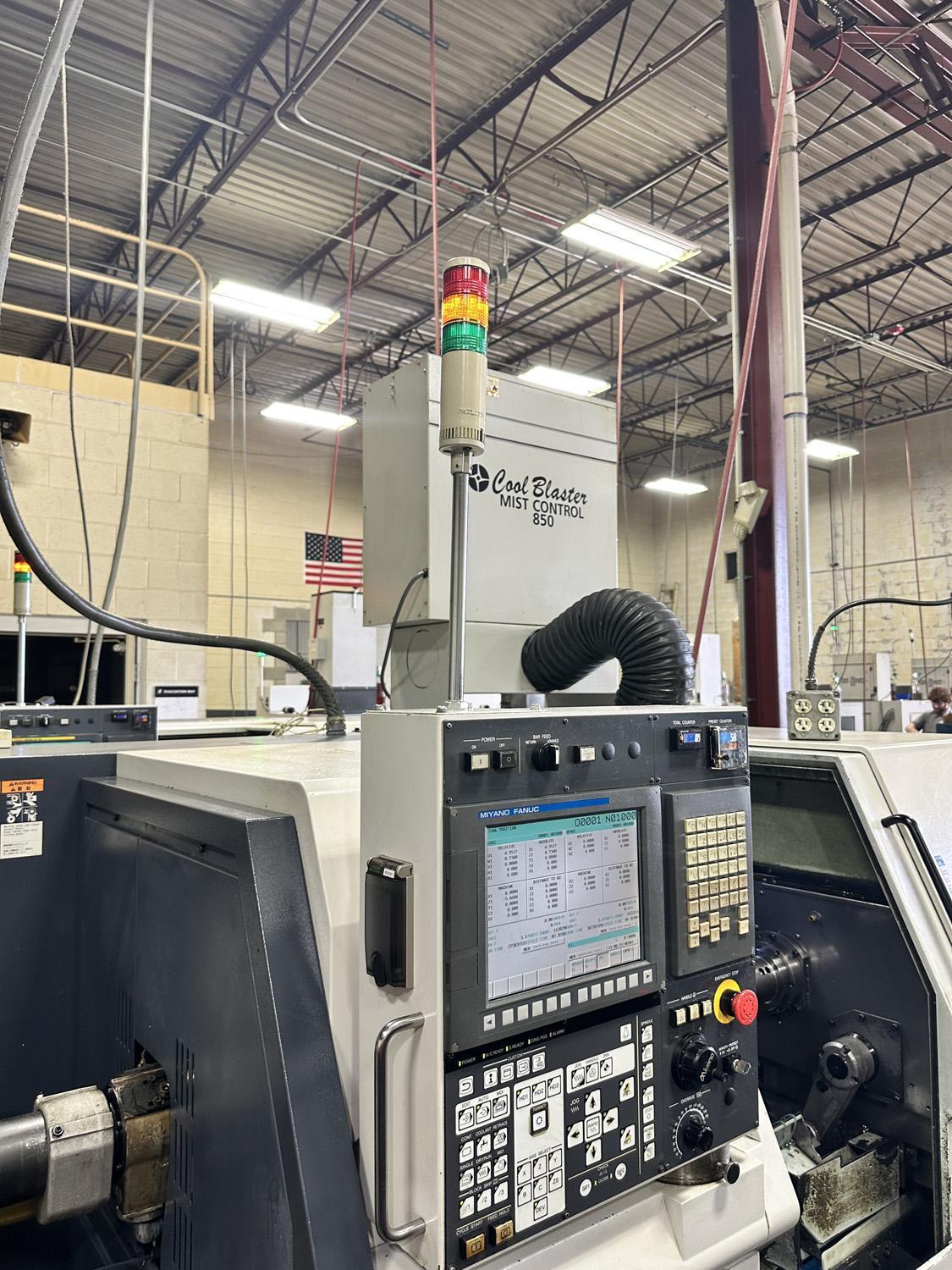

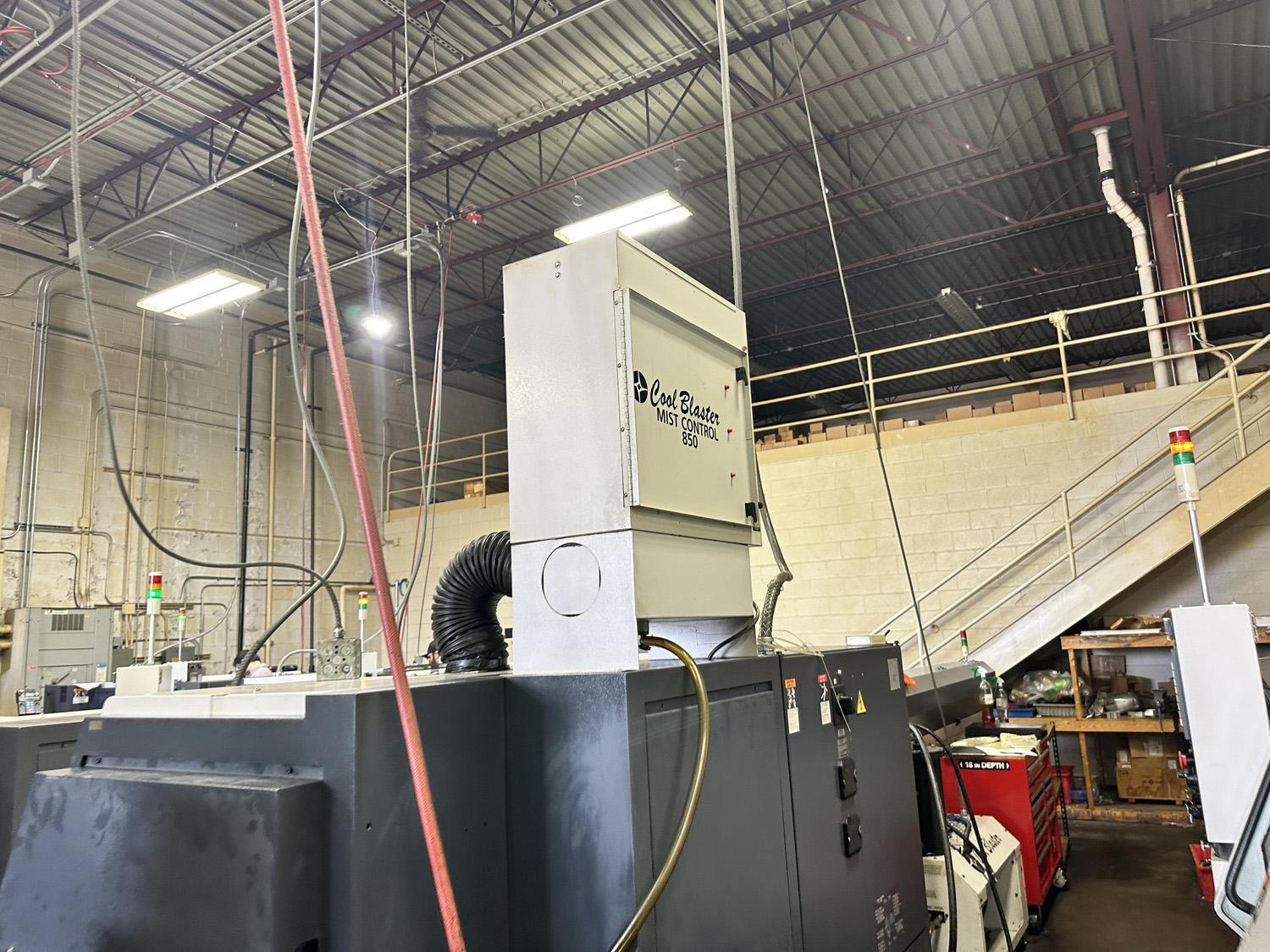

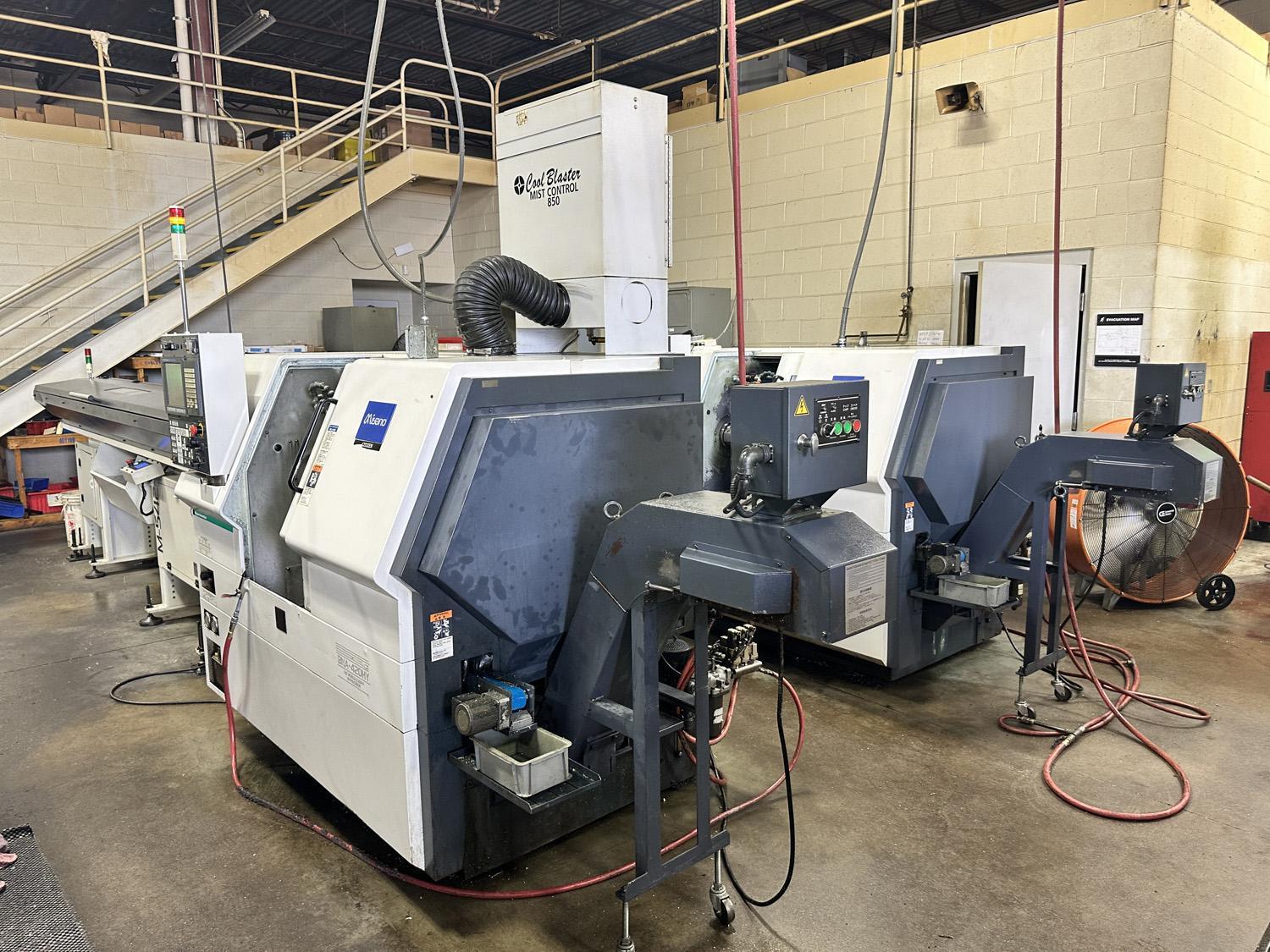

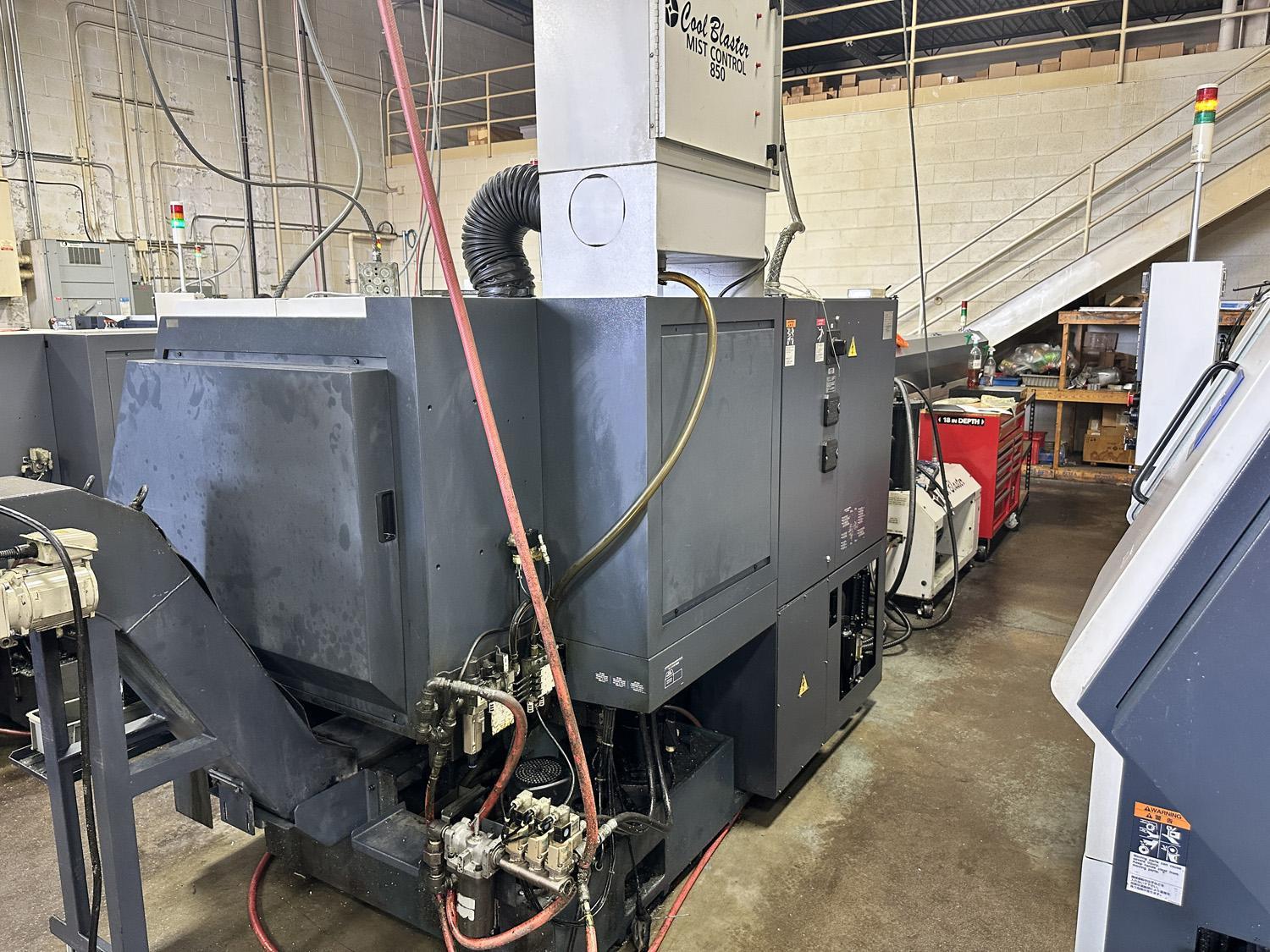

- Cool Blaster Mist Control 850
